PLC Horizontal Gabion Making Machine Description

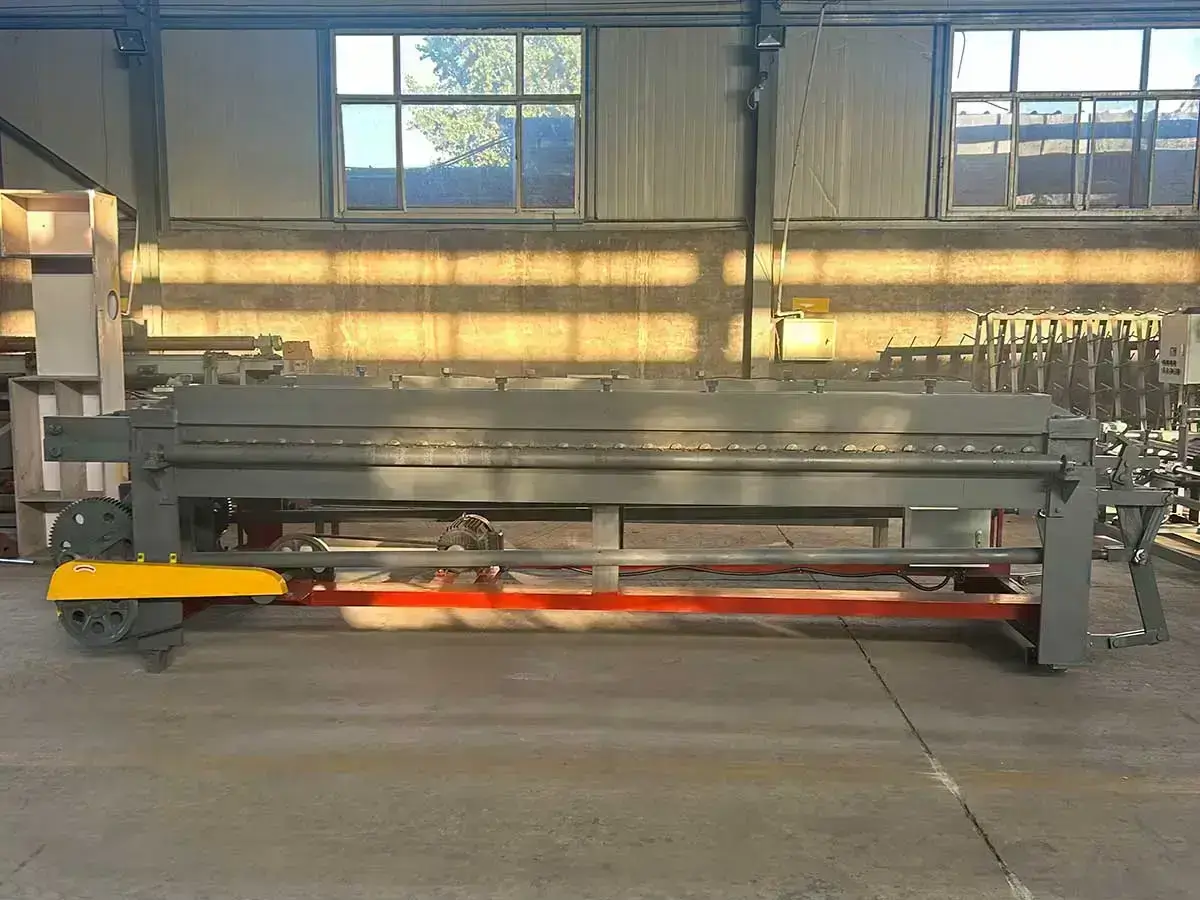

Fully Automatic Horizontal Gabion Making Machine
This upgraded model improves on the traditional horizontal design by replacing the old gear linkage system with PLC control and servo motors.
It’s operated via a user-friendly touchscreen, making the whole machine smarter and easier to run—perfect for modern, automated factories.

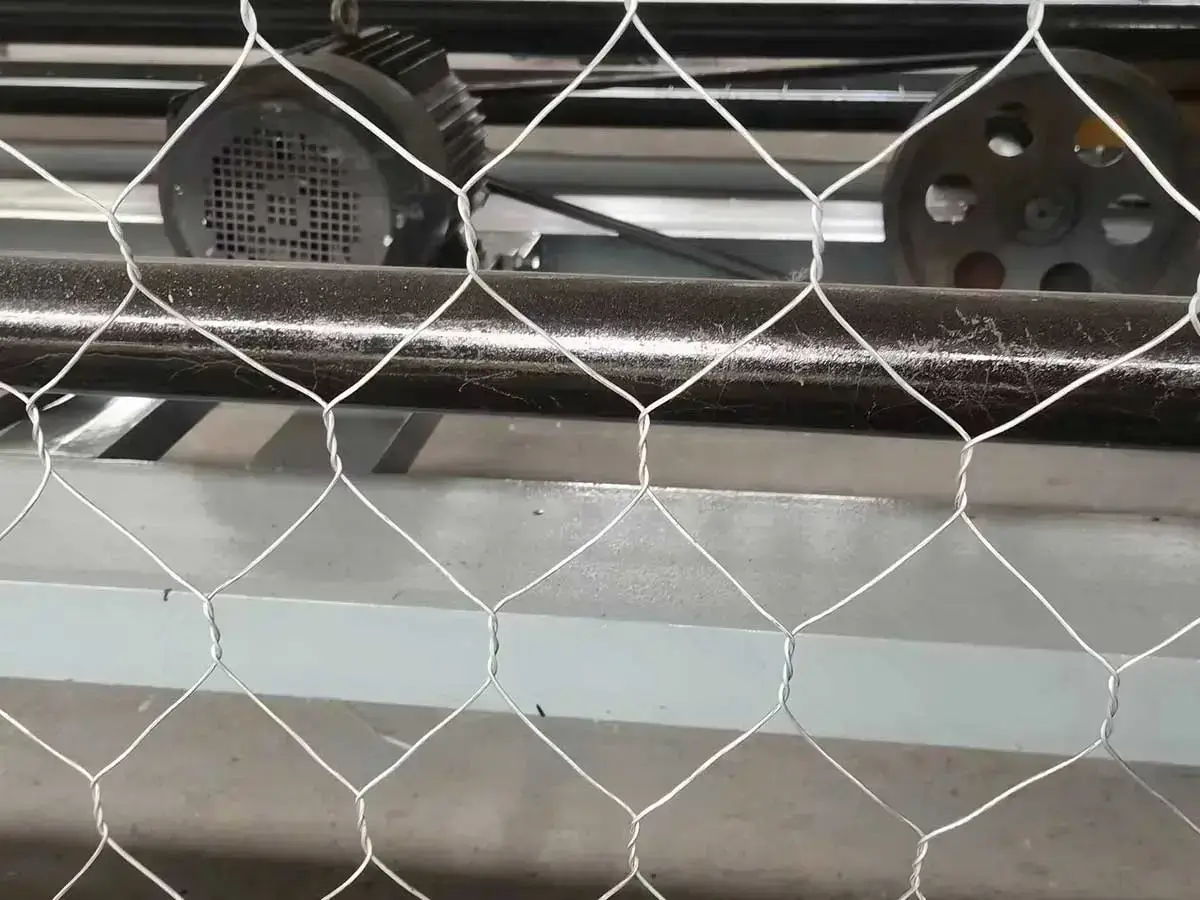

The PLC gabion making machine offers faster speed, quieter operation, and simpler maintenance, all while ensuring stable and high-quality mesh weaving.
Equipped with intelligent features such as automatic lubrication, fault detection, and compatibility with factory remote monitoring, enabling real-time production tracking.
Automatic Horizontal Gabion Making Machine Specifications
The following are the key technical parameters of our fully automatic horizontal gabion making machine, including mesh size, wire diameter, maximum mesh width, twist type, working speed, control system, and overall machine dimensions.
The gabion making machine’s parameters can be customized according to your specific production and engineering requirements.
| Parameter | Specification |
|---|---|
| Mesh Size | 60×80 mm / 80×100 mm / 100×120 mm |
| Wire Diameter | 1.0 – 3.0 mm |
| Max Mesh Width | 2000 mm / 3000 mm / 4000 mm |
| Number of Twists | 1 / 3 / 5 |
| Production Speed | 100 m/h |
| Motor Power | 15.5 – 19.5 kW |
| Weight | 3.0 – 5.0 t |
| Dimensions (L×W×H) | 4000×2100×1300 mm / 5000×2100×1300 mm / 6000×2100×1300 mm |
Automatic Horizontal Gabion Making Machine Layout Drawing
The figure below shows the factory layout of the PLC horizontal gabion making machine. The figure clearly shows the components of the equipment, including the gabion mesh machine, wire feeding system, and mesh roll winder.
Customized layout solutions and professional technical support can be provided according to customer requirements to help optimize factory space layout and production processes.
Need project-specific advice? Contact us.
Features Of Automatic Horizontal Gabion Machine
Touchscreen Control
With a built-in industrial-grade touchscreen, you can quickly adjust settings like mesh speed, output rate, and wire tension—making it simple to switch between different wire sizes or production needs.
Production Data Logging
Automatically records key data like operating time, production output, and downtime. This gives you better insight for planning, troubleshooting, and managing performance.
Real-Time Fault Detection
The system keeps a constant eye on key indicators like wire breakage and temperature. If something goes wrong, it alerts the operator and shuts down automatically to avoid damage and downtime.
Easy Maintenance & Future Upgrades
Thanks to PLC programming, process changes can be made through software updates—no need to replace hardware. This allows fast upgrades and even remote technical support when needed.
Case OF Automatic Horizontal Gabion Making Machine
The video below demonstrates the operation of our fully automatic horizontal gabion mesh production line on site, giving you a clear view of the manufacturing process and the quality of the finished mesh.
If you want to see more project examples, explore real application sites, or get expert guidance to select the perfect fully automatic horizontal gabion making machine for your needs, please contact us here to offer tailored solutions for your project.

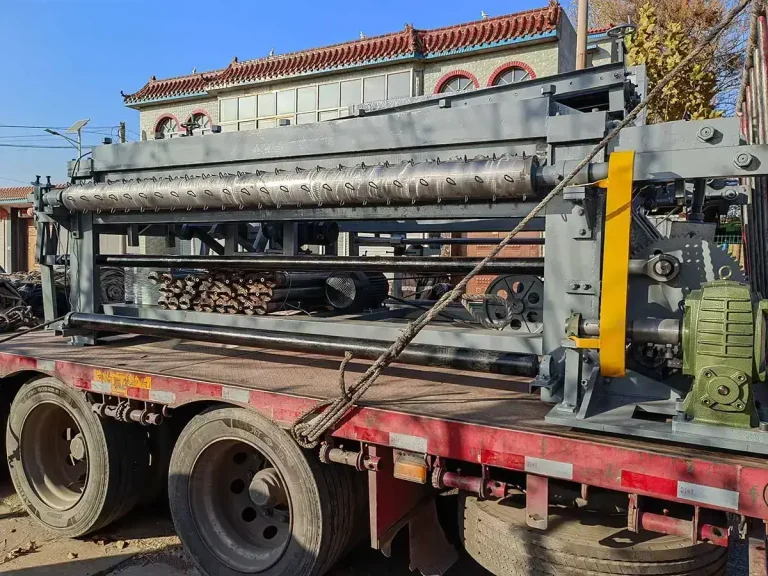

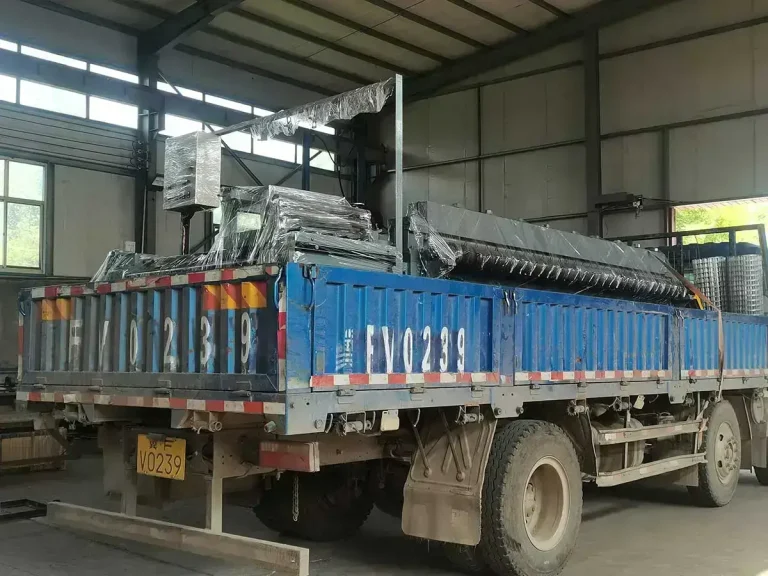

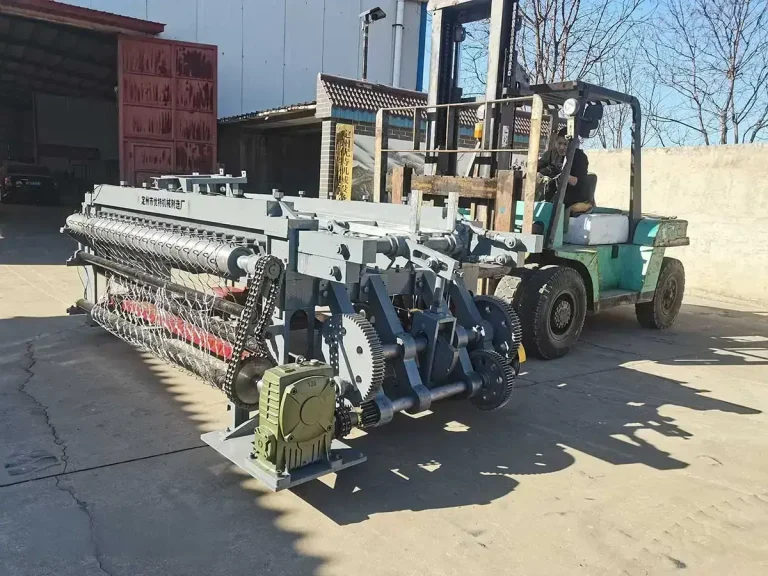

Dispatch of Automatic Gabion Box Making Machine

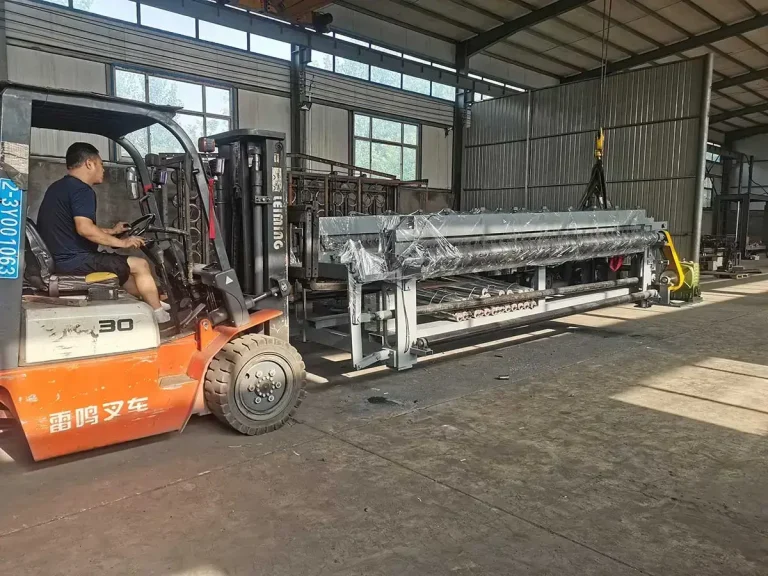

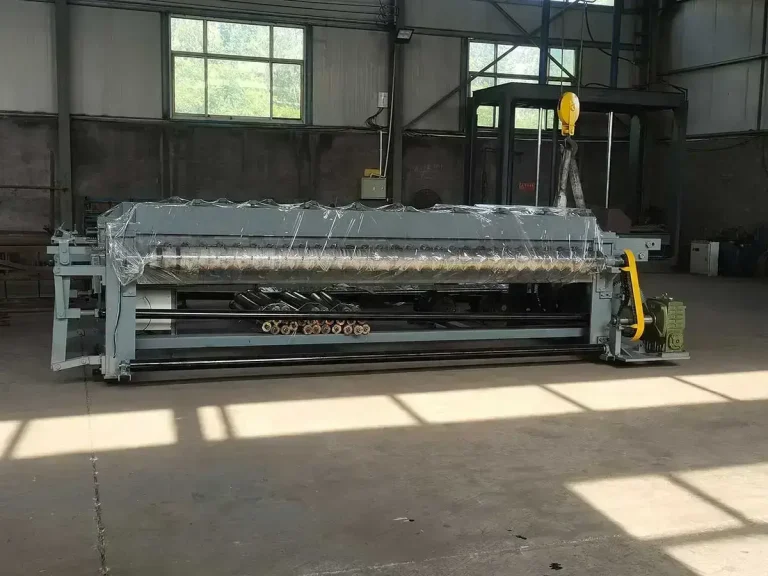

Each automatic horizontal gabion making machine is packaged in a wooden box or wrapped in protective film to ensure safe international transportation.

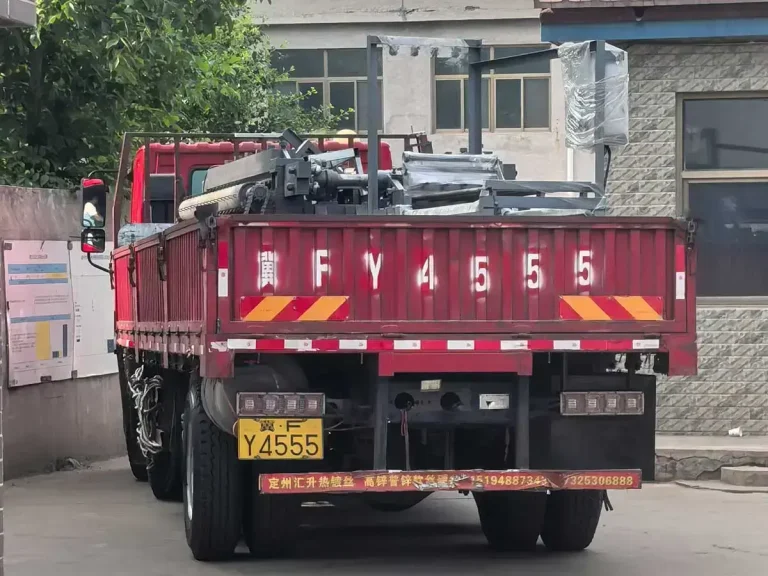

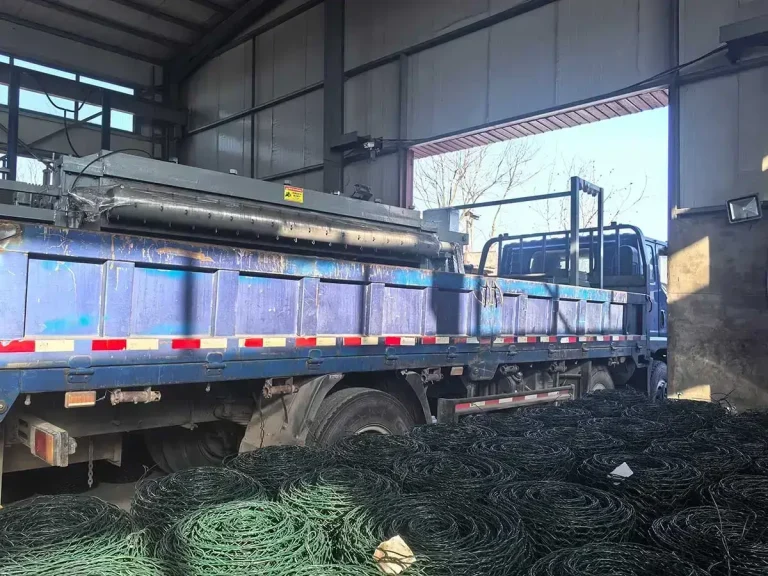

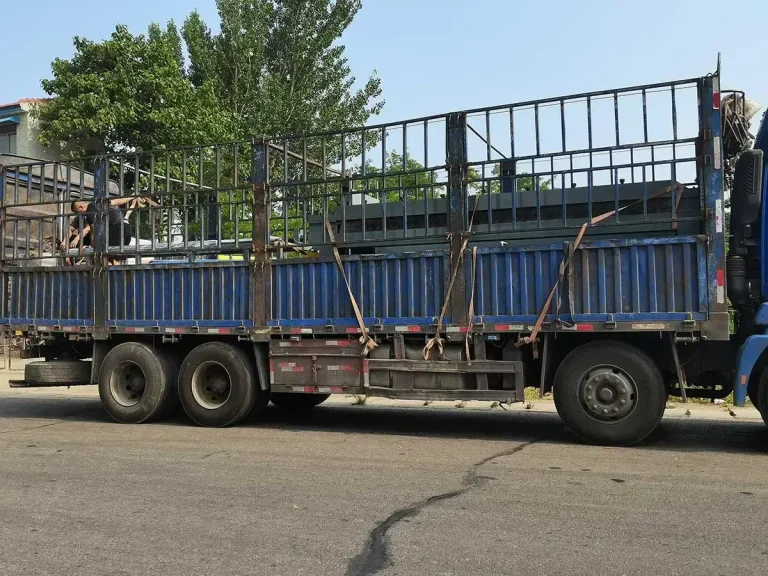

We offer flexible transportation solutions via sea or rail to ensure that your gabion making machine is delivered safely to destinations worldwide.
Get Factory Price for Gabion Machine
We’re the original manufacturer — factory direct, no trading companies involved.
Our engineers will respond within 24 hours with a quote and professional advice.
