4 Gabion Machine Models
From compact budget-friendly horizontal machines to high-capacity PLC-automated vertical lines — every model is factory-direct and configurable to your project specs.

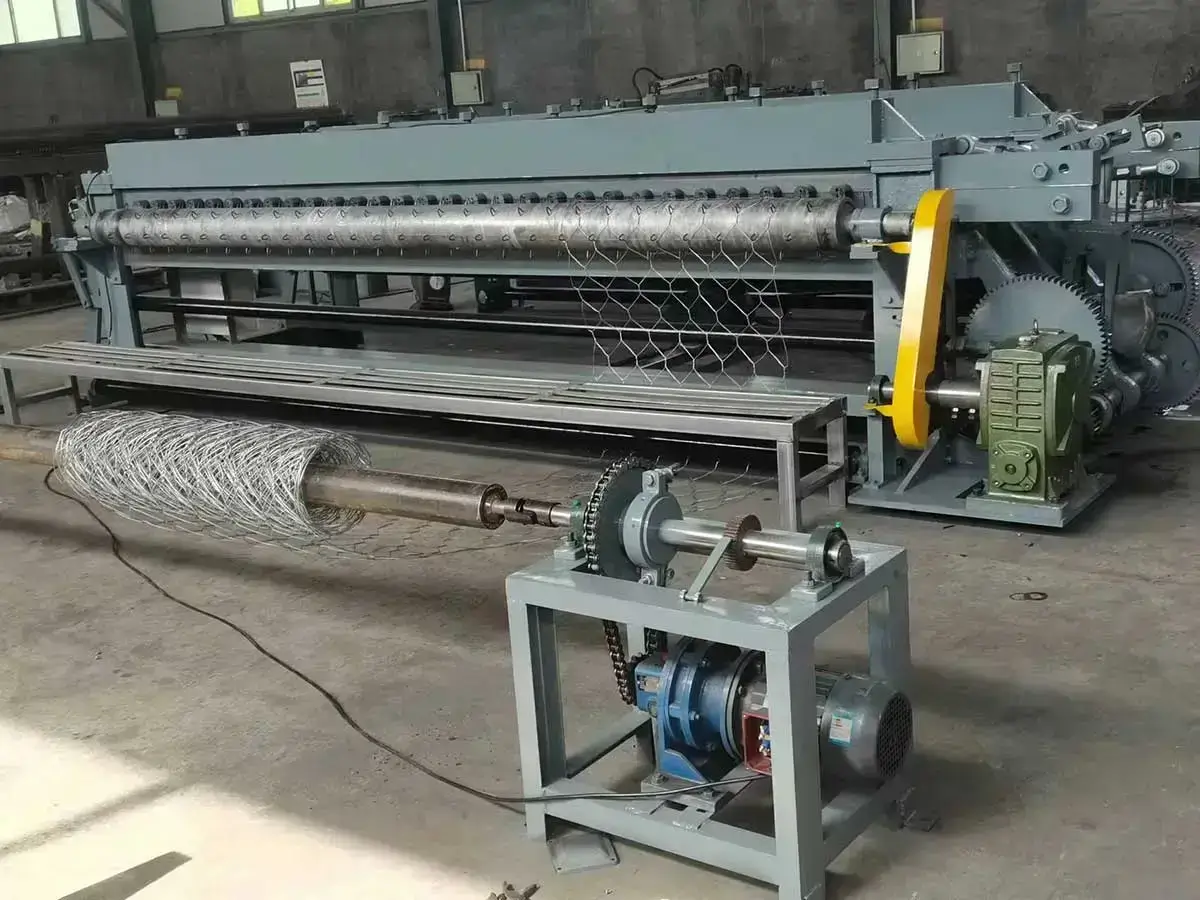

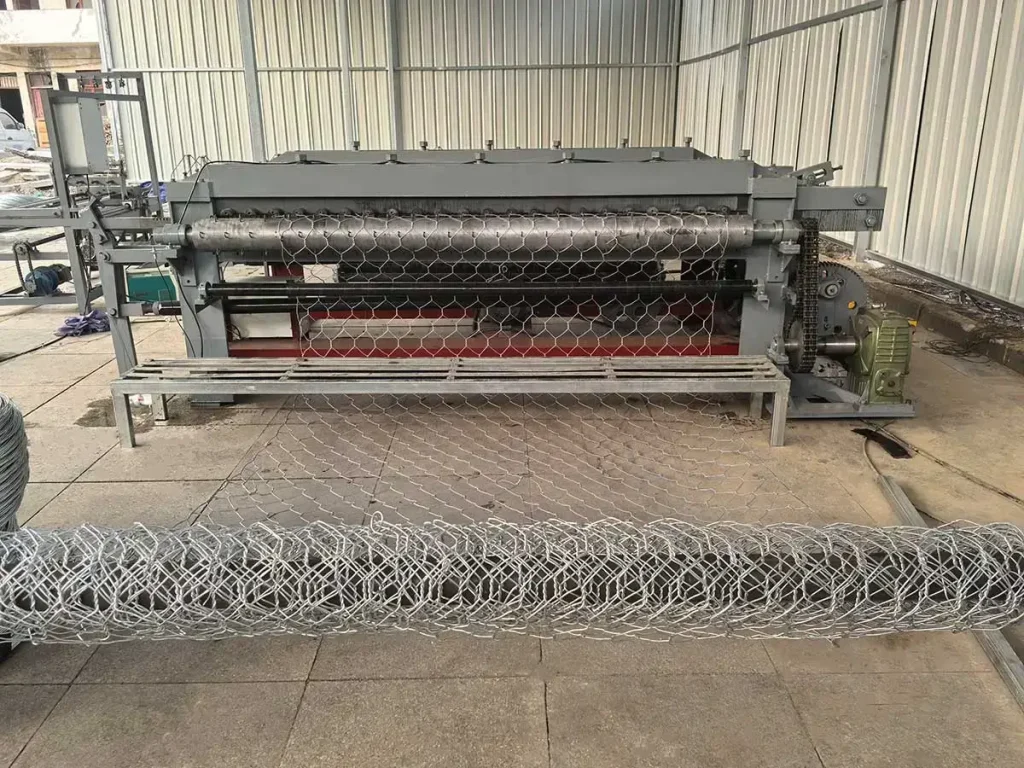

Horizontal Gabion Making Machine
Compact, cost-effective entry model. Ideal for small-to-medium projects with standard wire specifications and limited floor space.

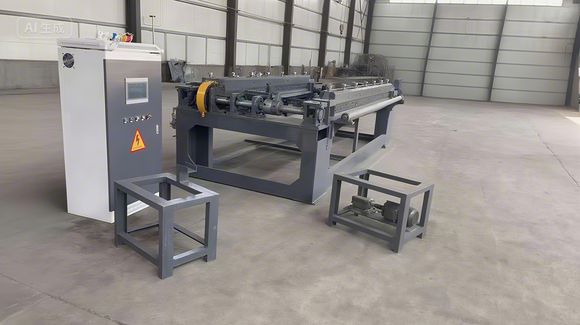

Horizontal PLC Gabion Mesh Machine
PLC servo automation cuts machine footprint by 30%, reduces noise below 75 dB, and enables one-click twist-type switching.

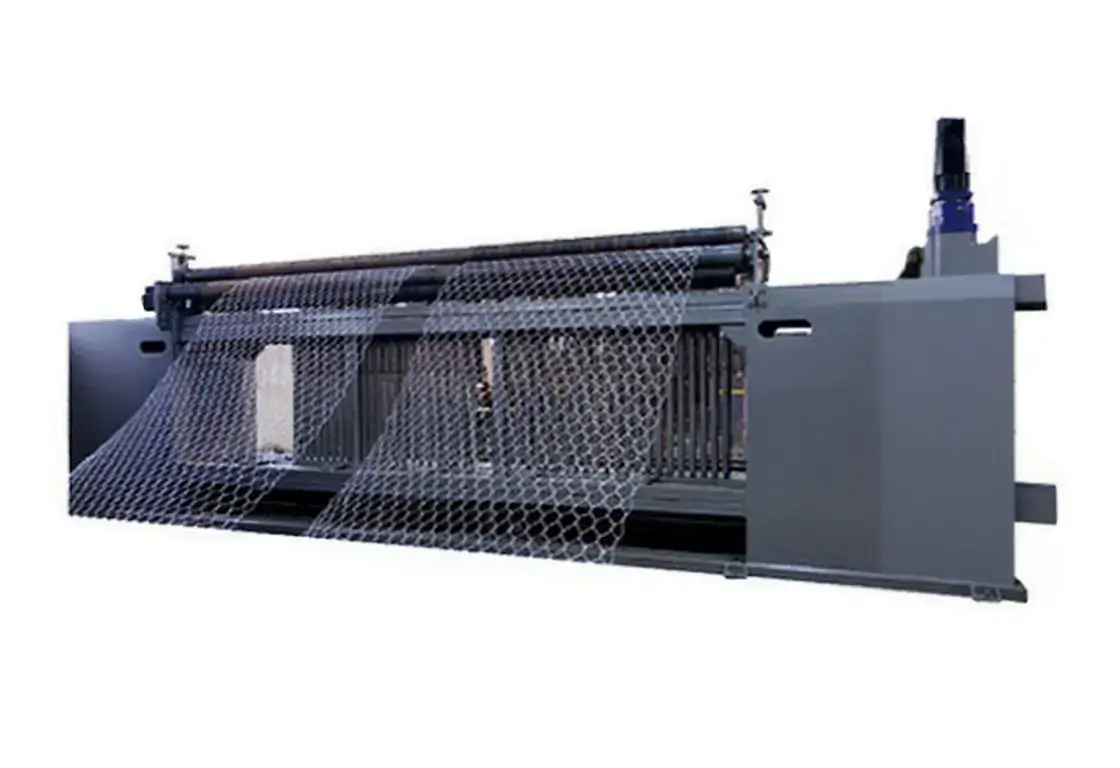

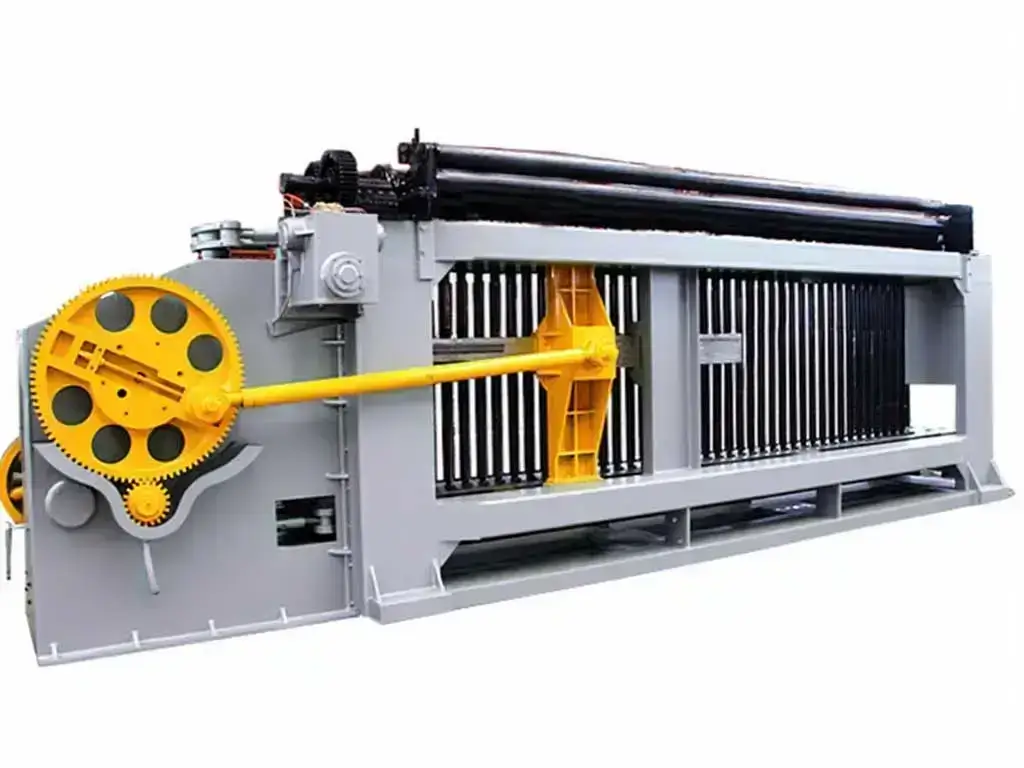

Heavy Duty Gabion Box Making Machine
Vertical weaving structure handles thick wire diameters at high throughput — best choice for large-scale slope protection and flood control projects.
Heavy Duty PLC Gabion Box Machine
Top-tier model for continuous large-scale production. 50% labor savings, and intelligent automation for long-term infrastructure projects.
Choose the Ideal Gabion Machine for Your Project
Use our side-by-side comparisons to identify which gabion machine fits your project scale, budget, and technical requirements.
| Feature | Horizontal Machine | Heavy-Duty Vertical Machine |
|---|---|---|
| Production speed | 20–50 m/h | 50–225 m/h |
| Wire diameter | 1.0–3.0 mm | 1.0–4.0 mm |
| Power consumption | 7.5–11 kW (lower) | 11–22 kW |
| Machine weight | 5.5–7.5 tons (compact) | 13–22 tons |
| Material compatibility | Galvanized, PVC, stainless | Also Galfan alloy, high-carbon |
| Investment range | USD 10,000–20,000 | USD 30,000–50,000 |
| Best for | Small–medium scale, ≤5,000 boxes | Large scale, ≥20,000 boxes |
| Feature | Mechanical Control | PLC Control |
|---|---|---|
| Control system | Gear & linkage — manual adjustments | PLC + touchscreen — one-click changes |
| Production Speed | 35 net/min | 45 net/min |
| Wire diameter | 1.0–3.5 mm | 1.0–3.5 mm |
| Power consumption | One 7.5-kilowatt motor | One 11.5-kilowatt motor and two 7.5-kilowatt motors |
| Noise level | >85 dB | <70 dB |
| Maintenance | Purely mechanical, easy to repair | Some knowledge of electrical is required |
| Initial investment | USD 10,000–30,000 (lower) | USD 40,000–100,000 |
Not sure which model suits your project?
Share your wire spec, project scale, and budget — our engineers will recommend the right configuration within 24 hours. Send your requirements →
Every Parameter, Configurable
Every gabion machine from YouTe can be spec’d to your exact requirements. As the original manufacturer, we own the full design and manufacturing process.

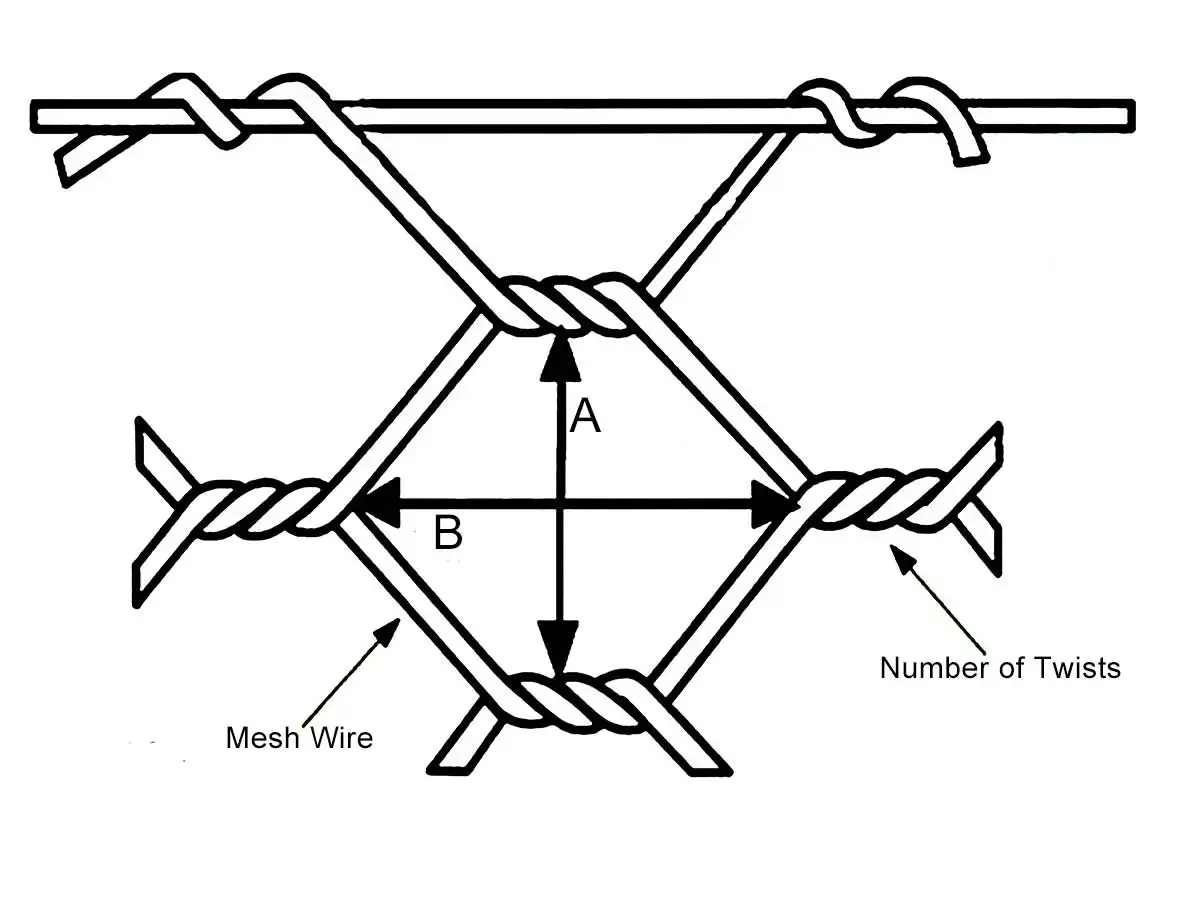

Flexible Mesh Size Options
We offer standard mesh sizes, including 60×80 mm, 80×100 mm, and 100×120 mm, which are ideal for slope protection and flood control.
Custom mesh sizes are also available to suit unique project requirements.

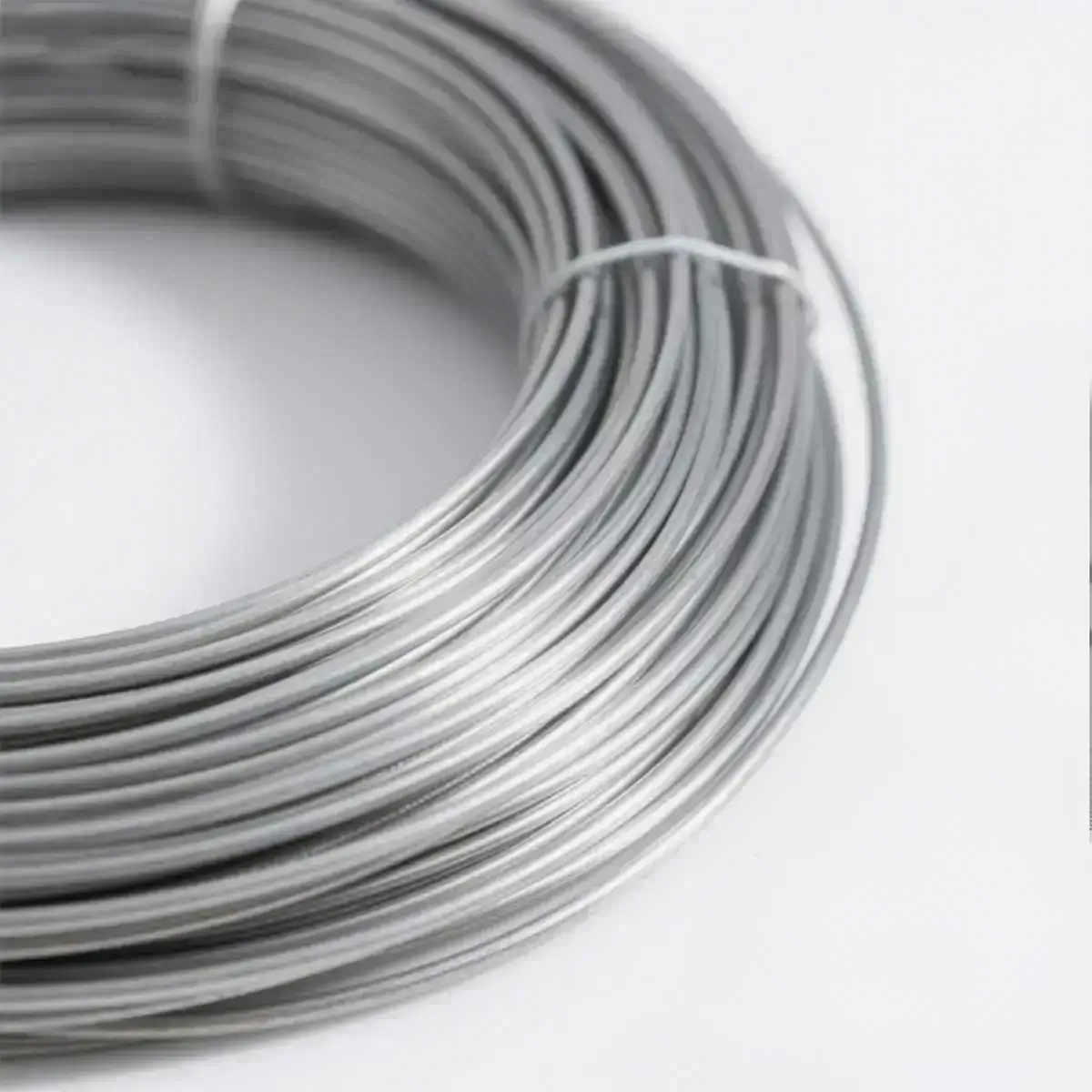

Wire Diameter Compatibility
Our machines handle various wire types—including galvanized, stainless steel, PVC, and PET wires.
Standard wire diameter ranges from 1 to 3 mm. For larger mesh openings, we can customize the machine to twist 4 mm or even 5 mm wire.

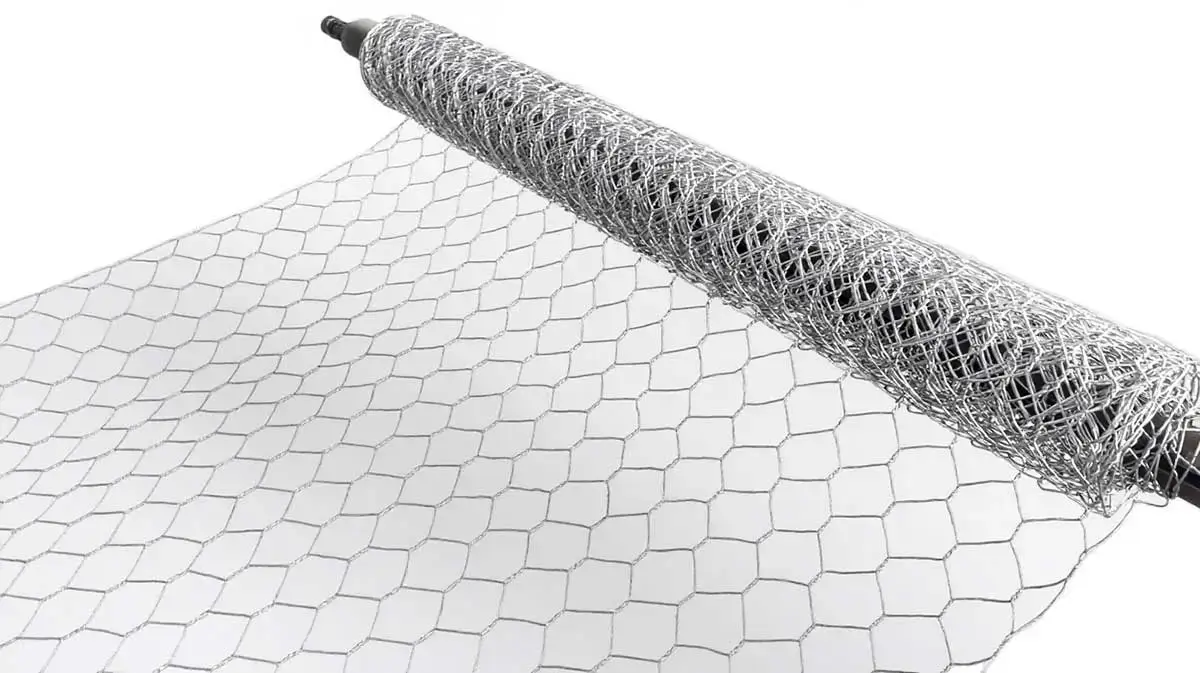

Customization Max Mesh Width
Standard maximum mesh widths include 2 m, 3 m, and 4 m, with custom options available for wider formats.
Each machine supports multiple-mesh weaving—for example, a 4 m model can simultaneously produce four 1 m-wide panels.

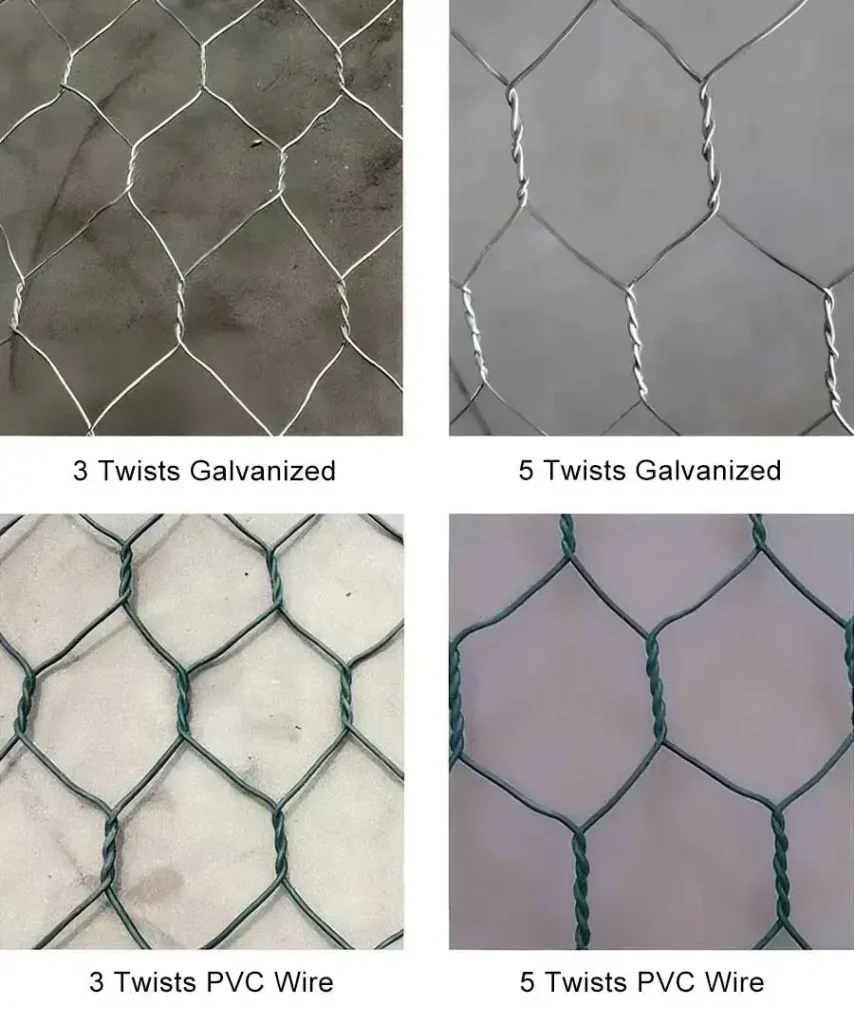

Customization Twist Typ
5-twist: Maximum strength and stability for fast-flowing rivers or high-scour zones.
3-twist: A well-balanced structure ideal for slope protection and dam reinforcement.
1-twist: High flexibility for soft ground or areas with heavy soil movement.
Machine Appearance & Branding
As the original manufacturer, we fully own the design and technology of our gabion machines.
We support custom machine colors and logos to align with your corporate identity and brand recognition.

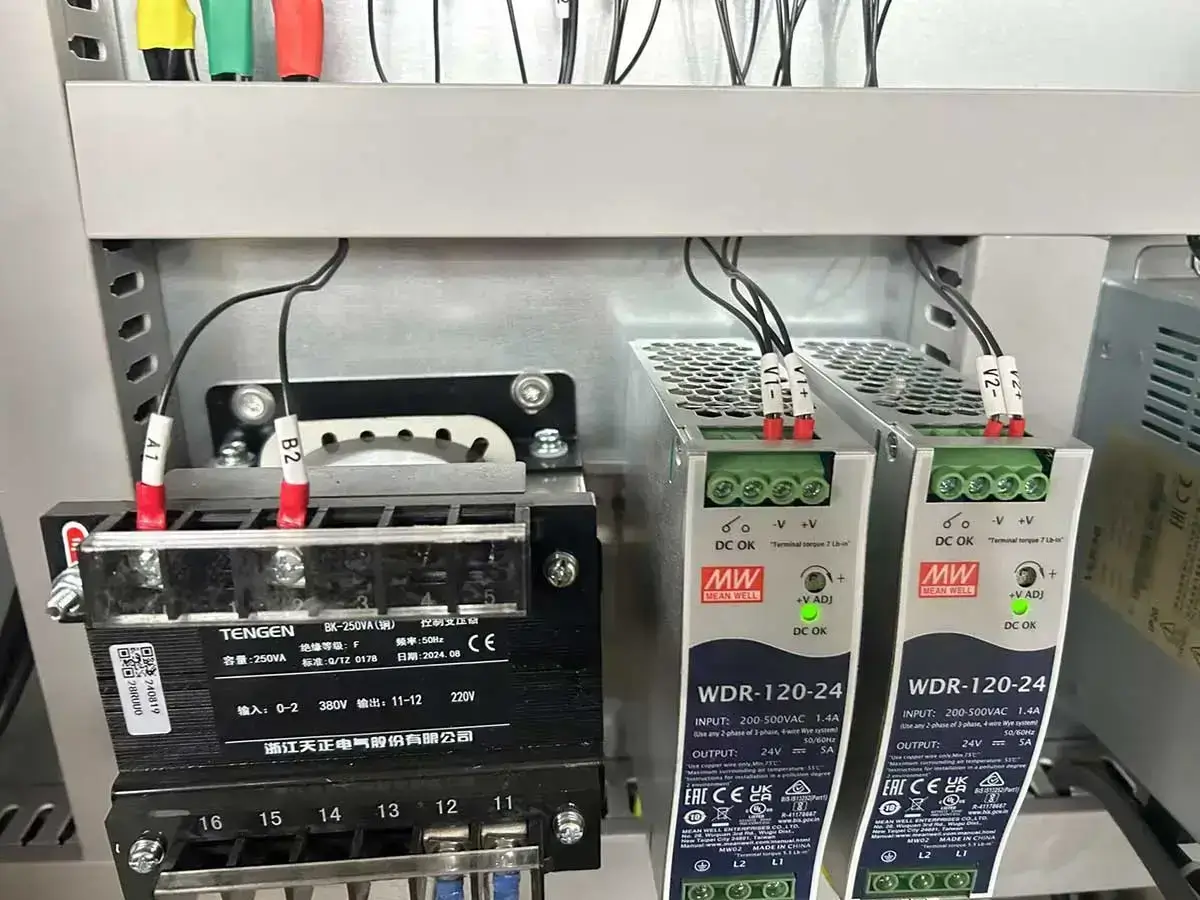

Customization Control System
Our Gabion Machines come with a standard electrical cabinet, tailored to your local power supply.
For advanced automation, upgrade to a PLC control system—offering precise mesh output, auto start/stop functions, and intuitive operation.
Let’s build the right gabion mesh machine for your needs — contact us today to streamline your production and save costs.
Factory Direct. Engineer Backed.
Work directly with the original manufacturer — no trading companies, no markups. Every gabion machine leaves our Hebei factory under ISO 9001 quality control.
Factory Direct Pricing
Cut out intermediaries by ordering straight from our gabion mesh machine factory, and maximize your budget without compromising quality.
Tailored Gabion Machine Solutions
Get custom-configured gabion mesh machines built to your exact mesh size, wire diameter, and production capacity requirements.
Built to Global Standards
All our gabion machines comply with ISO and CE safety and performance regulations, ensuring reliable, long-lasting operation worldwide.
Automated High‑Speed Lines
Deploy high‑efficiency, PLC‑controlled gabion mesh production lines that boost output, minimize manual labor, and reduce lead times.
Rapid Delivery & On‑Site Setup
We help your machinery get up and running quickly through fast production delivery and comprehensive after-sales service.
Dedicated After‑Sales Support
Access technical assistance, genuine spare parts, and hands‑on training to keep your gabion mesh equipment operating at peak performance.
Explore Our Gabion Machine Manufacturing Capabilities

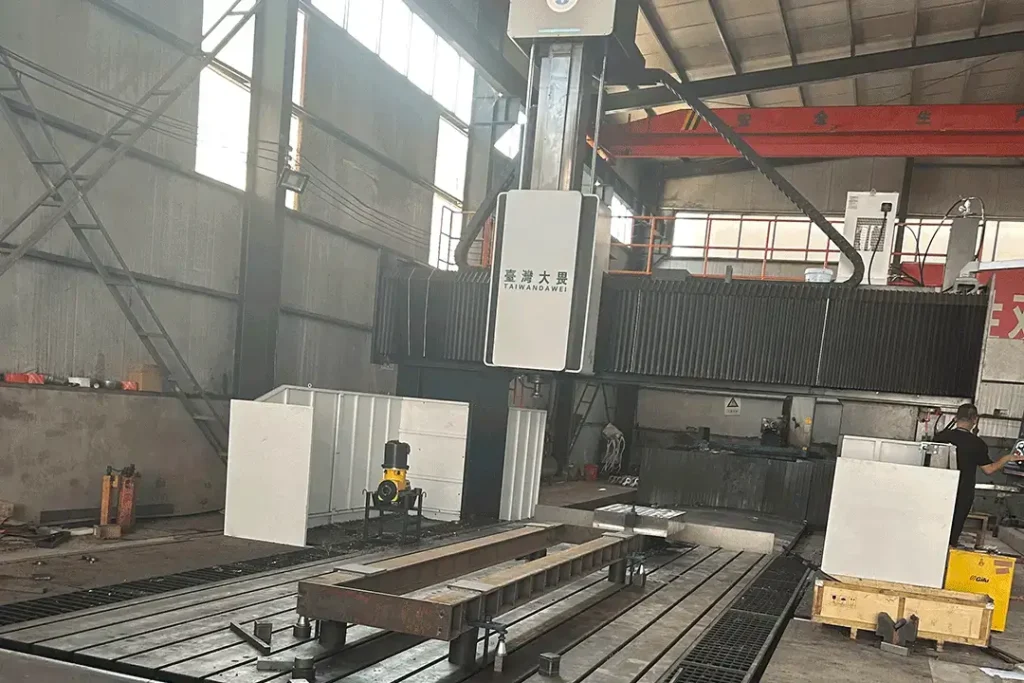

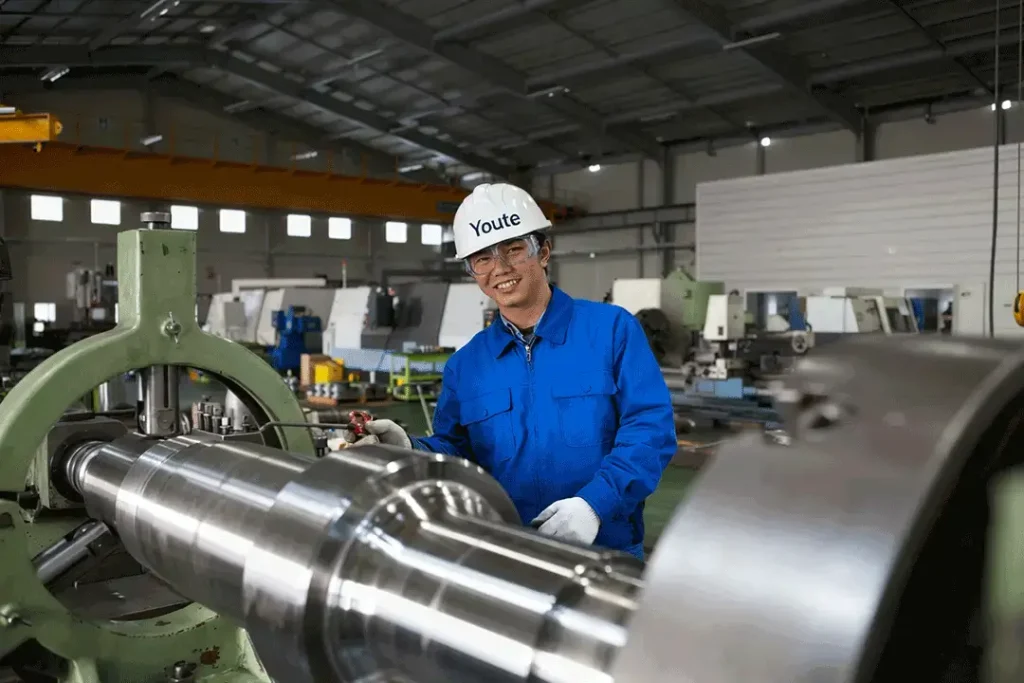

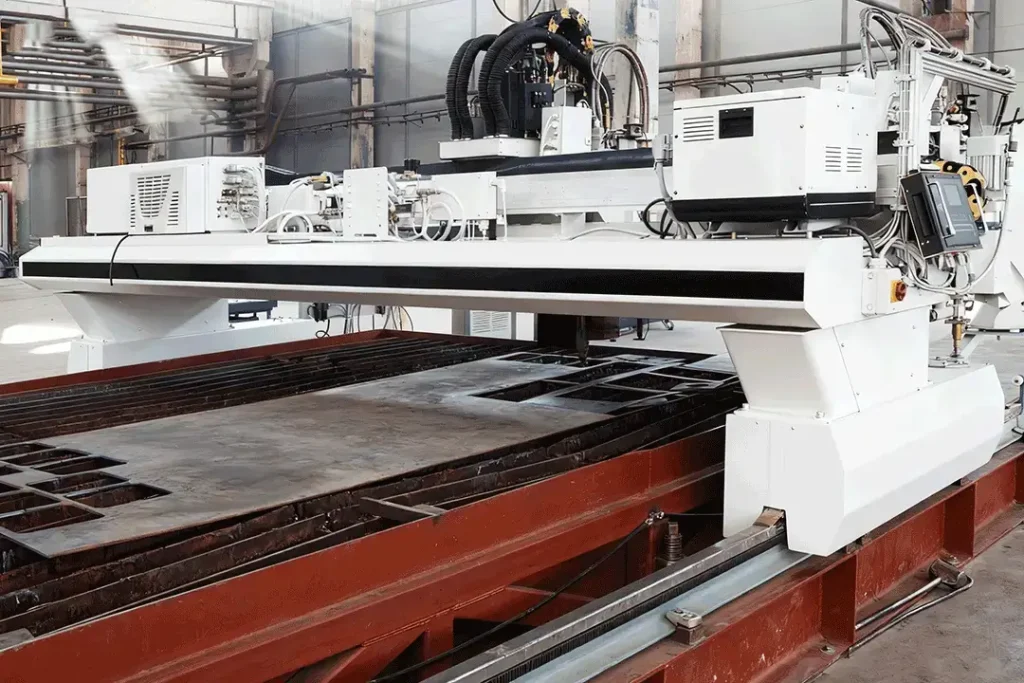

Our gabion machine manufacturers use modern CNC machining centers, automatic cutting machines, and advanced assembly lines to ensure every gabion wire mesh machine meets your project’s most challenging demands.
From raw alloy billets to ready-to-assemble components, all core machining is completed in-house under strict ISO 9001 quality standards.
Common Questions
Everything buyers ask before placing their first order with YouTe Machinery.
