CNC Heavy Duty Gabion Box Machine
fhfghfhfghgfhgfh
PLC automation. Maximum output. Lowest labor cost per square meter.

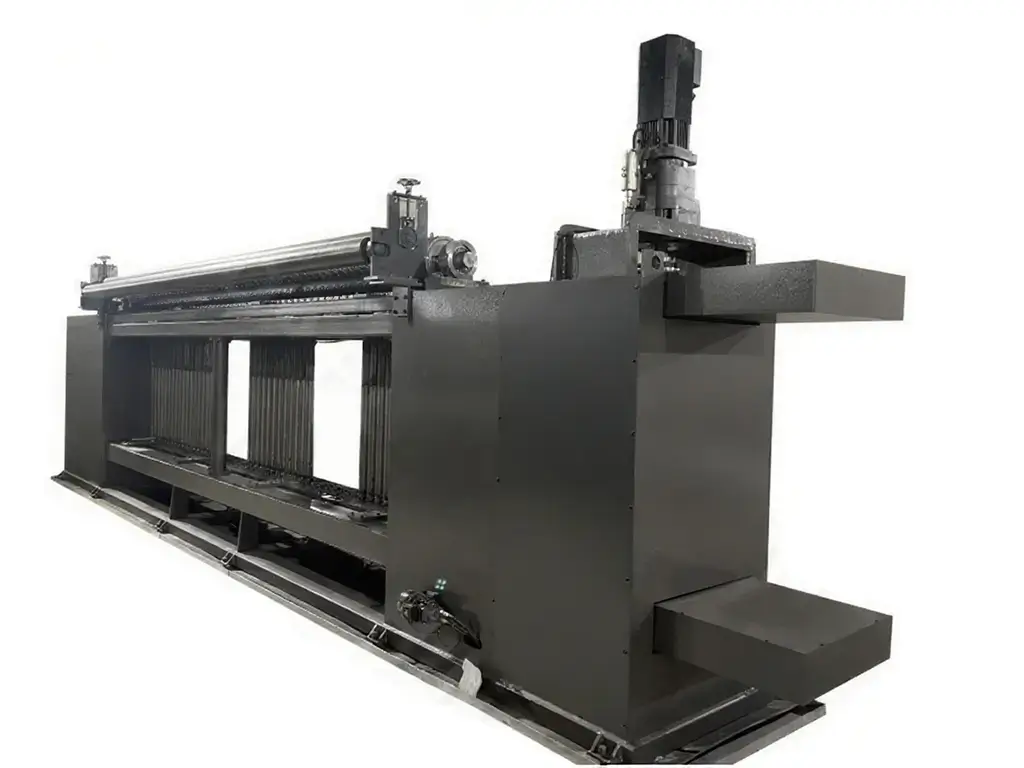

The CNC heavy duty gabion box machine is the highest-output model in the YouTe range — a vertical-weave platform with full PLC automation, servo motor control across all drive axes, and intelligent production monitoring.
Built for dedicated gabion factories and large infrastructure supply chains where daily output volume, mesh consistency, and labor efficiency are simultaneously non-negotiable.
Where the mechanical heavy duty model delivers the same vertical-weave architecture at lower cost, the CNC version adds automated parameter control, production data logging, remote fault diagnostics, and single-input twist switching — the capabilities that long-term government and infrastructure contracts increasingly require as standard procurement conditions.
CNC Heavy Duty Gabion Box Machine Specifications
All parameters are configurable. Wire diameter, mesh aperture, weaving width, and control system brand are confirmed before production begins.
| Parameter | Specification |
|---|---|
| Mesh opening size | 60×80 mm, 80×100 mm, 100×120 mm (standard); custom apertures on request |
| Weaving width | 2,300 – 5,400 mm; custom widths available |
| Wire diameter range | 1.5 – 4.5 mm |
| Number of twists | 3-twist or 5-twist; single-input switching |
| Operating speed | Up to 55 cycles/min |
| Maximum output | Up to 450 m²/h |
| Drive system | Full servo motor — all axes |
| Motor power | 33 – 45 kW (configuration-dependent) |
| Operating noise | Below 75 dB at full production speed |
| Machine weight | 18+ t |
| Control interface | PLC touchscreen |
| Control system brand | Siemens / Schneider / Omron or regional brand on request |
| Voltage | 220V / 380V / 400V / 415V / 480V — 50Hz or 60Hz, 3-phase |
| Operators required | 1 – 2 (vs 2 – 3 for mechanical equivalent) |
| Lubrication system | Timed circulation — fully enclosed oil tanks |
| Auto pause system | Included |
| Production data logging | Included |
| Remote diagnostic | Included |
Mesh opening size is fixed at manufacture. Wire diameter range must be confirmed before order — CNC heavy duty configurations are optimized for the 1.5–4.5 mm range and are not the correct choice for wire consistently below 1.5 mm.
CNC Heavy Duty Gabion Box Machine — Production Footage
This footage shows the CNC heavy duty gabion box machine running at full automated production speed. PLC control response, servo tension management on thick-gauge wire, and panel output quality are all visible under normal operating conditions.
If you want to see more project cases or need help choosing the right automatic heavy-duty gabion box machine, feel free to contact us; we’re here to offer customized solutions for your needs.
Why Choose the CNC Heavy Duty Gabion Box Machine
Maximum Output for Large-Scale Infrastructure Supply
At up to 10000 m/12 h, the CNC heavy duty machine produces more gabion mesh per shift than any other model in the YouTe range. For factories supplying slope protection, flood control, or highway infrastructure projects — where contracts are measured in tens of thousands of square meters — this output capacity is the difference between fulfilling a contract on time and running behind schedule.
Remote Fault Diagnosis
When a fault condition occurs, the PLC logs a diagnostic code. Our engineering team can access fault history remotely and guide your operators through resolution via WhatsApp video call — without waiting for an on-site visit. For facilities in remote locations or regions where specialist technical support is scarce, this capability reduces unplanned downtime from days to hours.
Output Capacity for the Largest Infrastructure Contracts
Slope protection, flood barrier, and riverbank reinforcement projects are typically contracted by area — thousands of square meters over a defined timeline. At up to 180 m²/h, a heavy duty machine running two shifts can fulfill large-scale infrastructure supply commitments that would require multiple horizontal machines to match. One machine, one production line, one maintenance relationship.
PLC Control System Specified to Your Facility
Motors, servo drives, PLCs, and sensors are specified by brand at the time of order. Facilities with existing Siemens infrastructure specify Siemens. Operations in regions where Schneider or Omron components are more readily available specify accordingly. The result: your maintenance team works with familiar components, and spare parts are sourced locally rather than waiting on international shipment.
Mesh Consistency Across Government-Grade Contracts
Government and public infrastructure procurement increasingly requires documented quality assurance — consistent mesh aperture, twist count, and wire tension within defined tolerances. The CNC heavy duty machine’s servo tension control and production data logging provide the output consistency and documentation trail that regulated procurement environments require. Mesh geometry does not drift between morning and evening shifts.
Production Line Layout and Workshop Requirements
A complete CNC heavy duty gabion mesh production line consists of four integrated components:
Packaging, Export Documentation, and Delivery
Every CNC heavy-duty gabion box machine is prepared for international freight before leaving our Hebei facility.
PLC control panels, servo drives, and electrical components receive anti-static wrapping and shock-absorbing foam protection in addition to standard wooden crate packing.
