Horizontal Gabion Mesh Machine

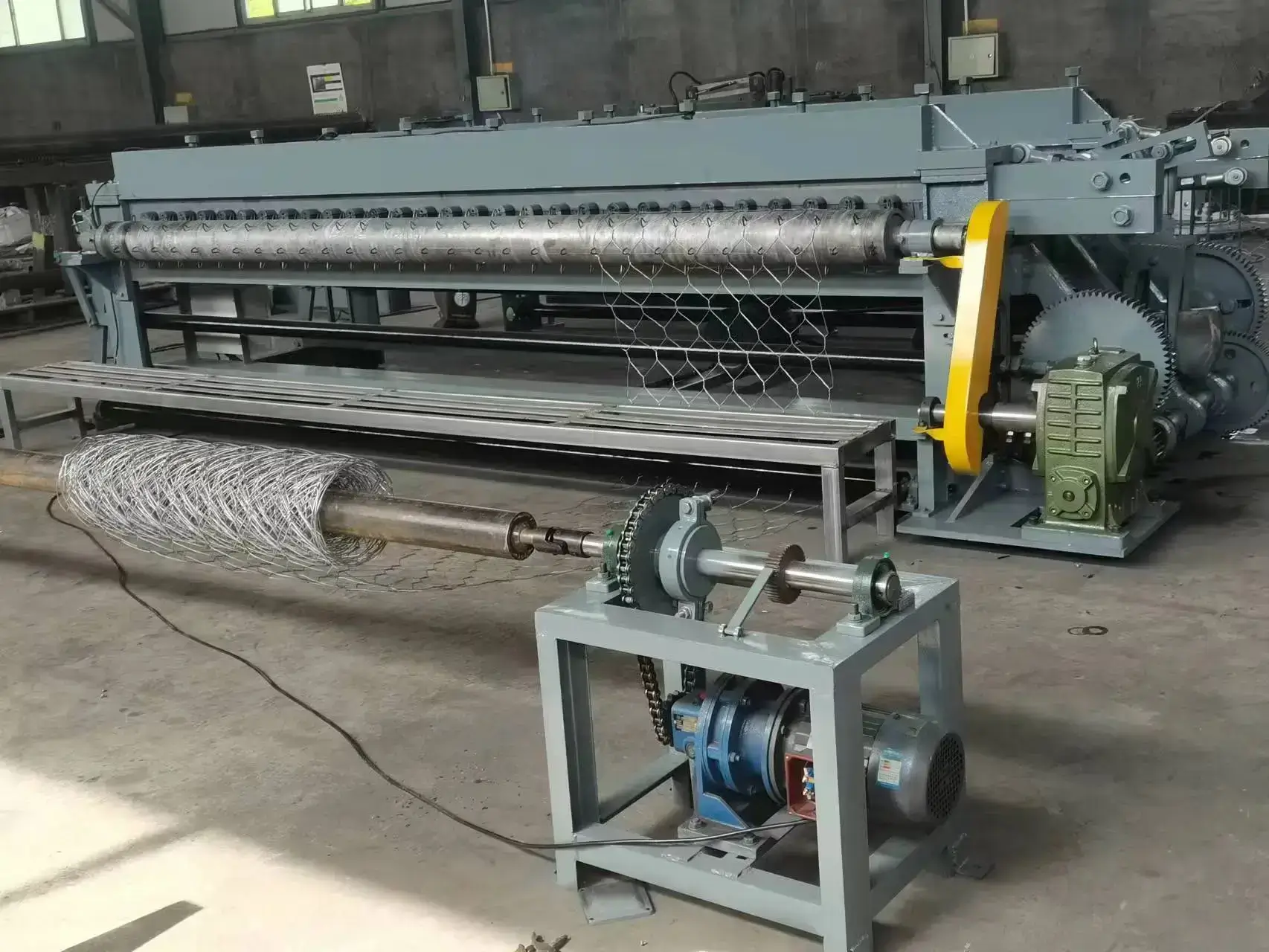

The horizontal gabion mesh machine is designed for the fully automated production of gabion boxes. Clear front view of the feeding and twisting section of our horizontal gabion mesh machine. Wire feeding mechanism keeps the gabion mesh production continuous and efficient. Finished wire mesh coming out of the horizontal gabion mesh machine, ready to be folded into gabion boxes.
Mechanical Drive. Compact Footprint. Half The Cost of a Heavy-Duty Vertical Model.
The horizontal gabion mesh machine is a wire-weaving system engineered specifically for hexagonal gabion mesh (also known as Gabion mesh, Reno mattress, or PVC-coated rock cage netting).
Unlike vertical-spindle configurations, this machine arranges its main drive shaft and twist-wire mechanisms along a horizontal axis — delivering a lower center of gravity, reduced vibration, and a more compact footprint that suits workshops with limited floor space or capital budget.
A single three-phase motor powers the entire weaving cycle, from wire feeding and twisting to mesh forming and take-up. The horizontal frame design makes routine inspection and part replacement straightforward, reducing downtime and maintenance costs for small-to-medium fabricators.
Horizontal Gabion Mesh Machine Specifications
All parameters are configurable to your project requirements. Standard specifications are listed below — wire diameter, mesh width, and twist count can all be adjusted at the time of order.
| Parameter | Specification |
|---|---|
| Wire Diameter Range | 1.0-3.2mm |
| Mesh Size | 60×80 mm, 80×100 mm, 100×120 mm, or as your request |
| Weaving Width | Max. 4,300 mm (custom widths available) |
| Twisted Number | 3 or 5 (One machine can only make one twist number) |
| Operating Speed | Approx. 38 cycles/min |
| Motor | 7.5 kW |
| Voltage | Customized to local power supply standards |
| Dimension | 6.3×2.1×1.4 m |
| Weight | 5.0T |
Need a configuration outside these parameters? Submit your spec — our engineers will confirm feasibility within 24 hours.
Horizontal Gabion Mesh Machine Detail Gallery

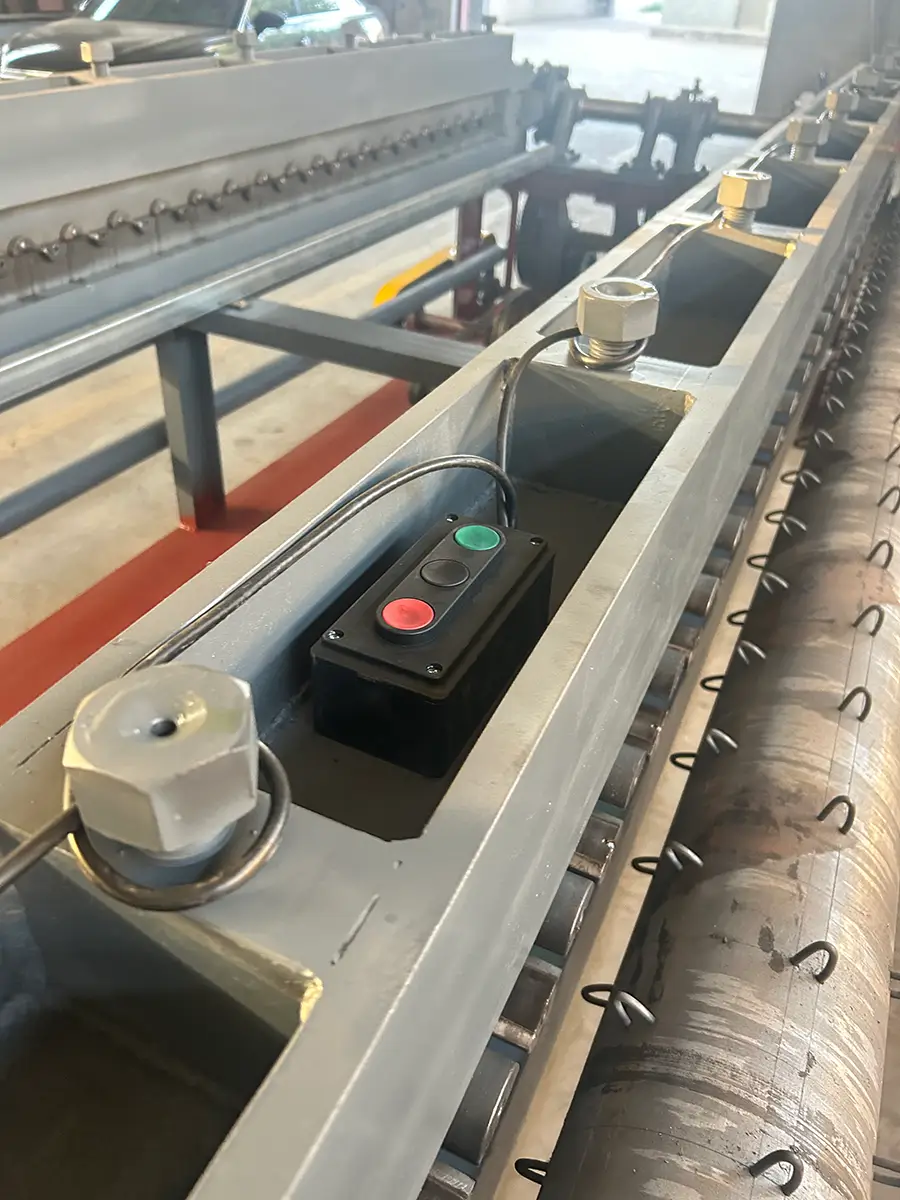

Control & Lubrication

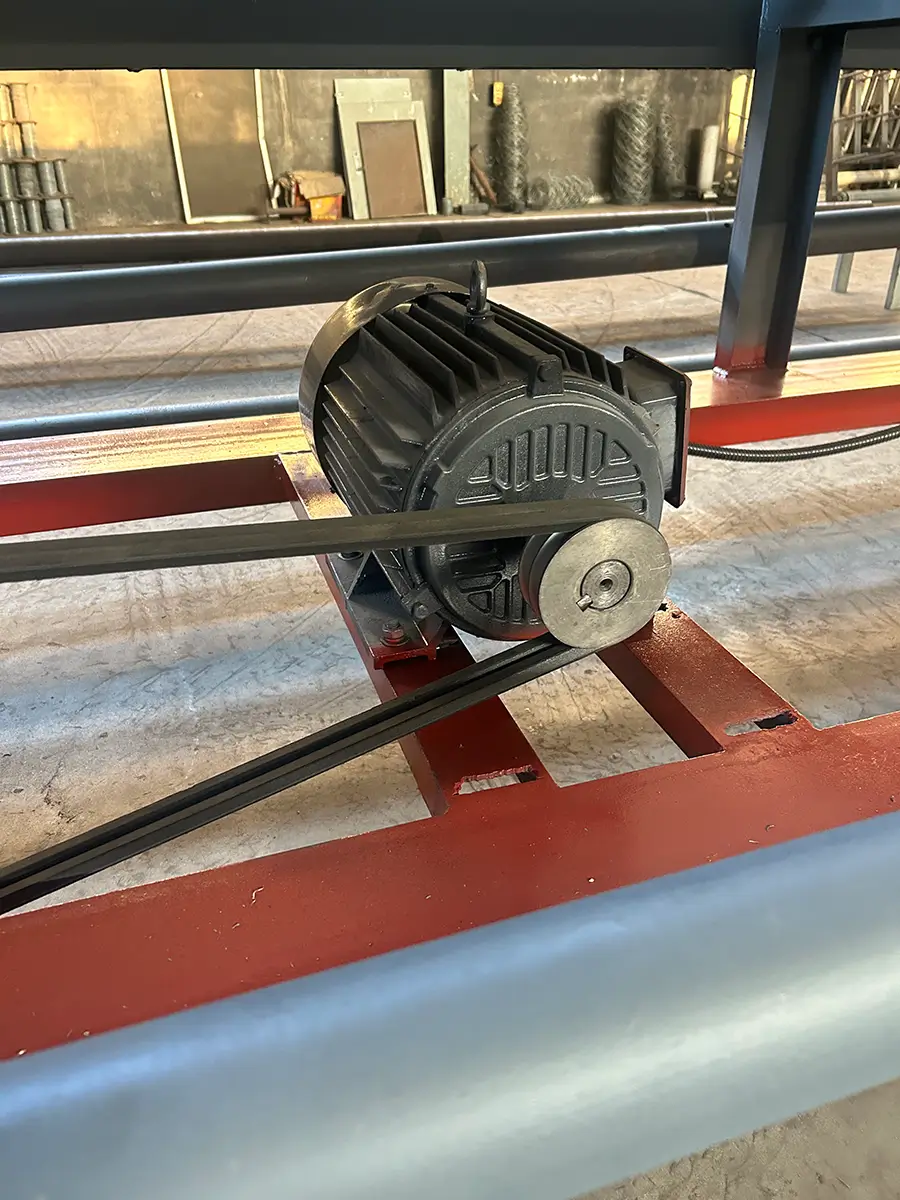

Main Motor

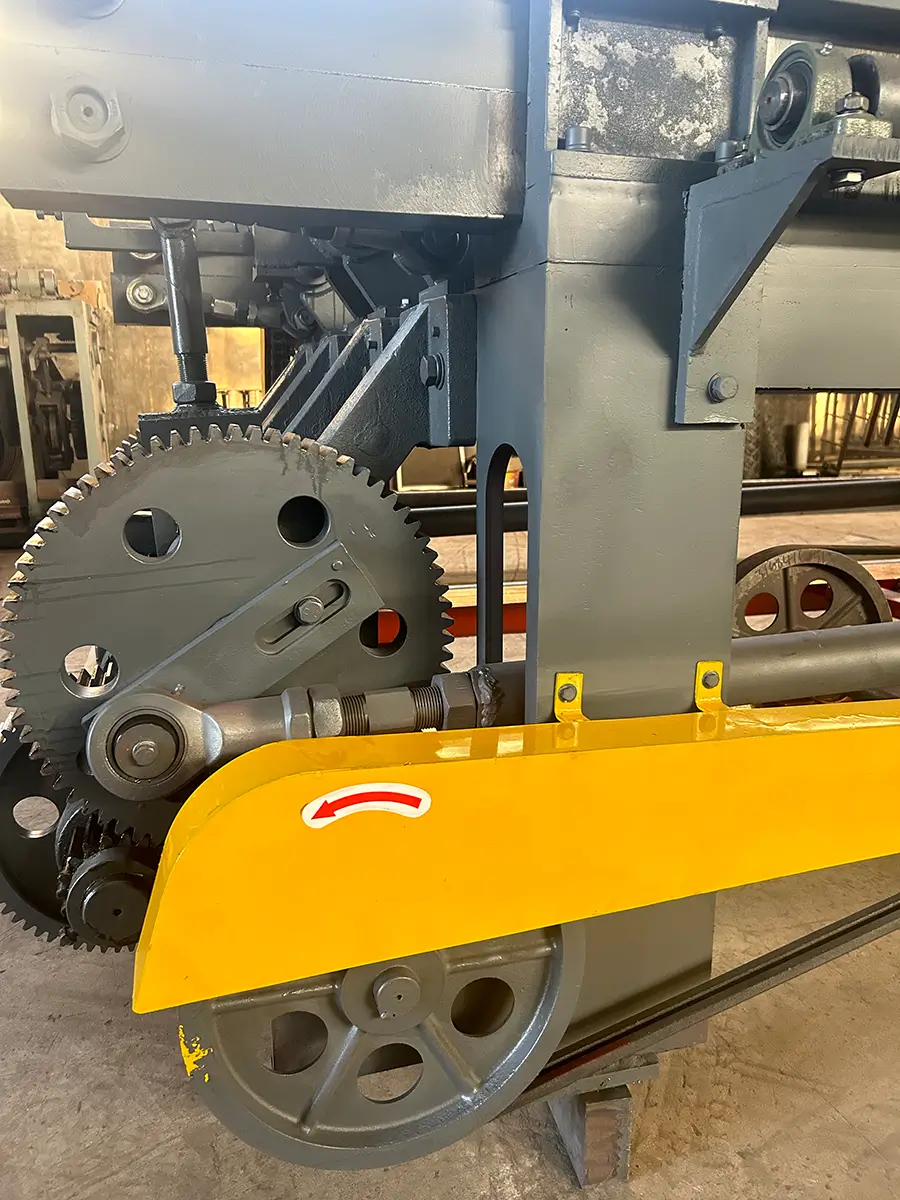

Belt Pulley

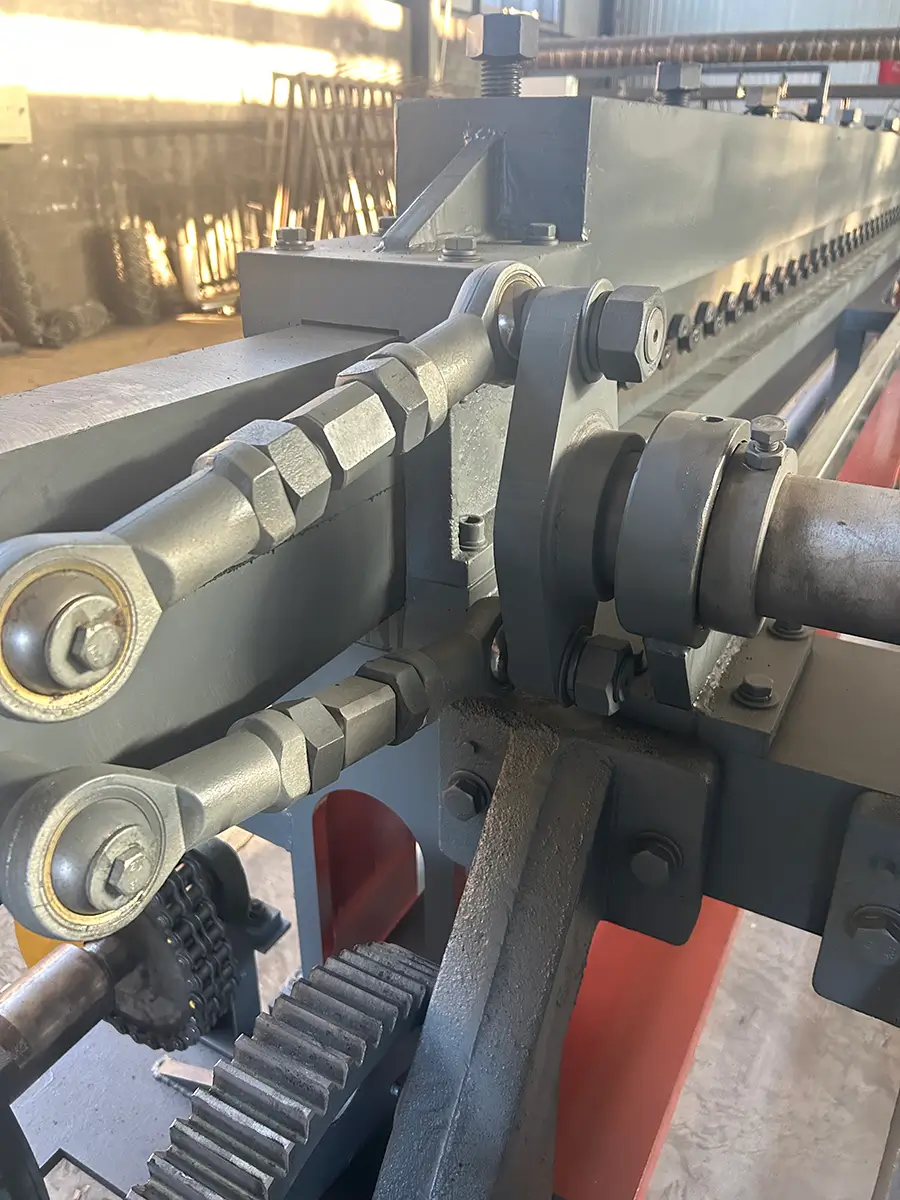

Twisting Unit

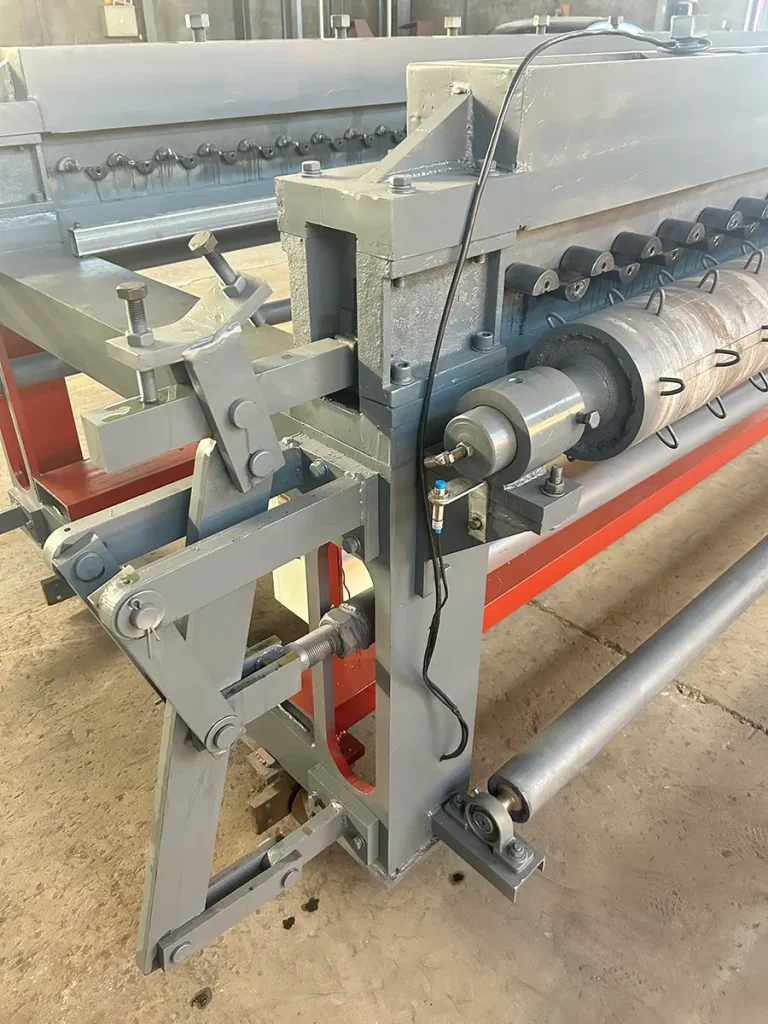

Output Sensor

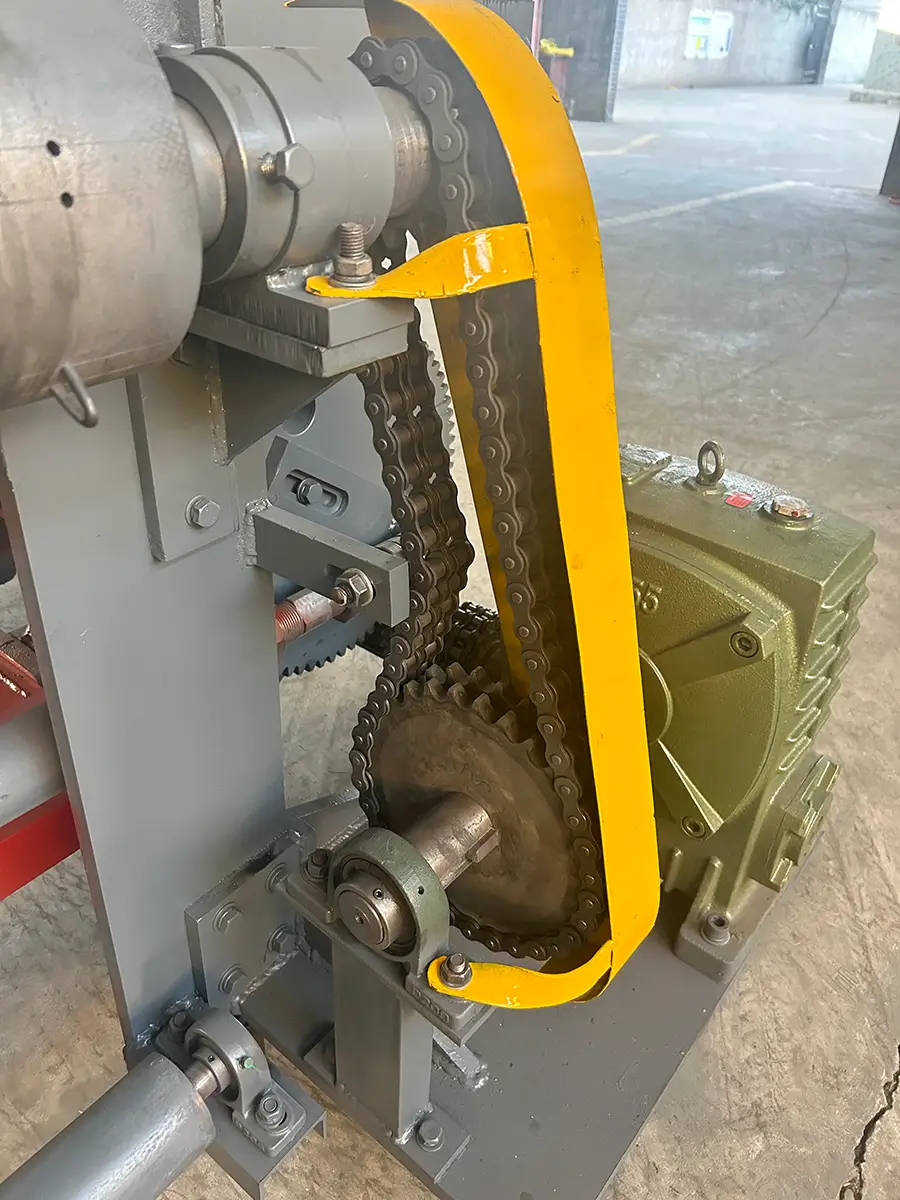

Gearbox Drive
Production Line Layout

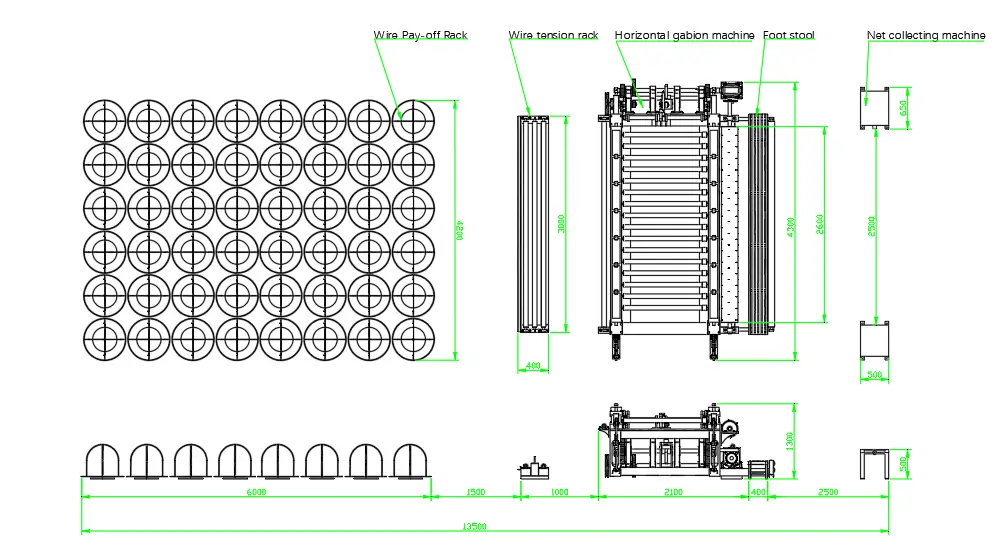

Understand the full gabion machine production line footprint before purchasing. We provide detailed layout drawings and customised configuration advice for your workshop.
Horizontal Gabion Mesh Machine Production Video
This footage shows a horizontal gabion machine completing a full weaving cycle under production conditions — wire feed, mesh formation, and panel output. Weaving speed, twist consistency, and operator workflow are all visible at normal operating speed.
Why Choose the Horizontal Gabion Mesh Machine
Mechanical Durability for Sustained Production
High-strength steel frame with abrasion-resistant treatment on all high-wear contact points. Designed for continuous production schedules — long maintenance intervals, minimal unplanned stops, and no servo components to calibrate or replace.
Capital-Efficient Entry Into Gabion Production
At approximately half the purchase cost of a heavy-duty vertical machine, the horizontal model lets new operations enter gabion mesh production without over-committing capital. Output quality on standard wire gauges is consistent with higher-cost configurations — the saving is in the drive system, not the mesh.
Consistent Mesh Quality Across Full Shifts
The mechanical drive system maintains uniform wire tension and twist geometry from the first panel to the last. No warm-up cycle, no electronic calibration — just consistent output the moment the main switch is on.
Operator Visibility and Accessible Maintenance
The horizontal weaving platform gives operators an unobstructed view of the full weaving width at all times. Wire breaks are immediately visible and resolved without stopping the line. All routine inspection and lubrication points are accessible at floor level — no ladders, no specialist tools, no extended downtime for basic maintenance.
Packaging and Delivery
Every horizontal gabion mesh machine is prepared for international freight before leaving our Hebei facility.
Reinforced wooden export crates with protective film on all exposed mechanical and painted surfaces. Engineered for sea freight, rail, and multimodal transport without damage to components or finish.
