Automatic Hexagonal Wire Mesh Machine

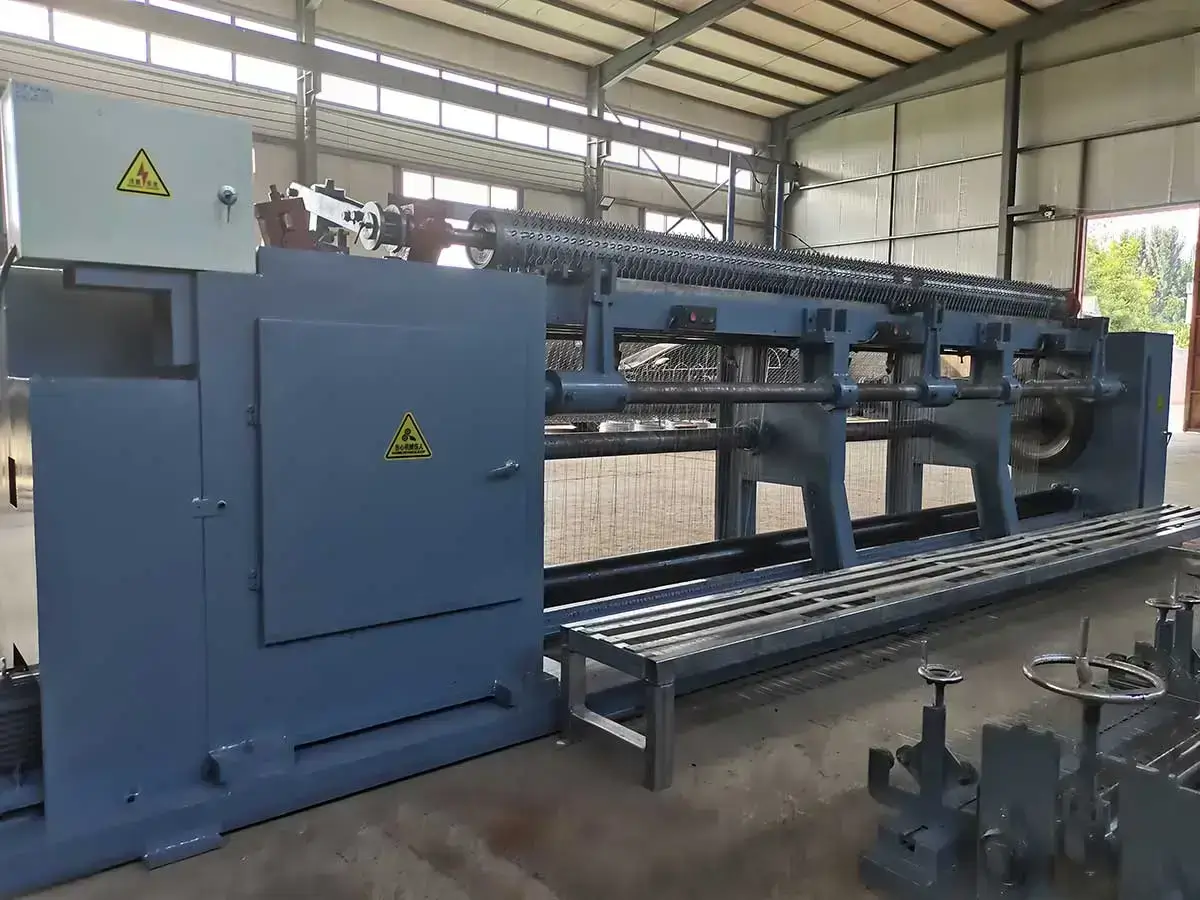

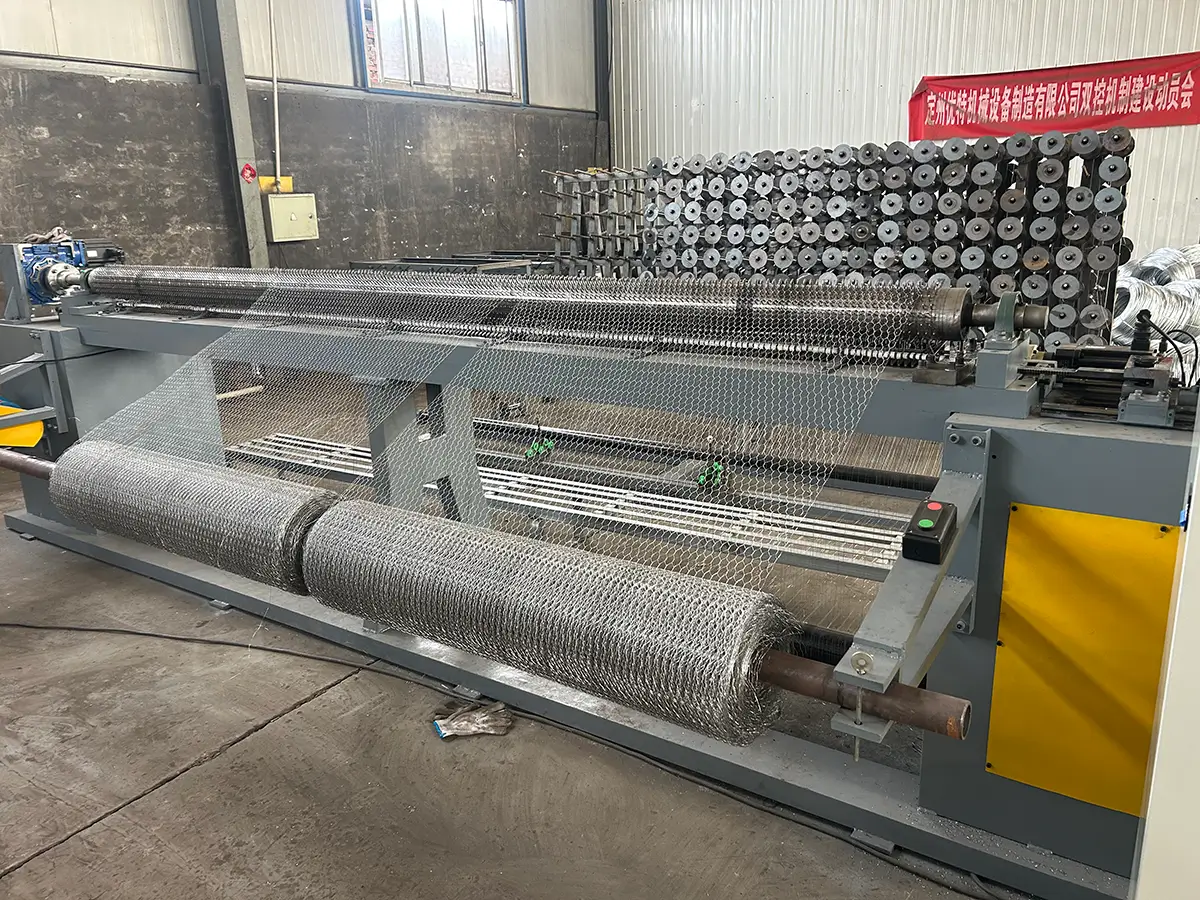

One 4-meter Automatic Hexagonal Wire Mesh Machine can simultaneously produce 2 to 4 rolls of 1-meter-wide mesh. Automatic Hexagonal Wire Mesh Machine delivers consistent mesh quality and high output efficiency. Designed for simple and intuitive operation, the Automatic Hexagonal Wire Mesh Machine requires minimal training. The single-motor hexagonal wire mesh machine offers a cost-effective solution for standard hexagonal wire mesh production.
Servo-Driven Precision. PLC Touchscreen Control.
The YOUTE Automatic Hexagonal Wire Mesh Machine (also known as Hexagonal Wire Netting Machine or Chicken Wire Machine) is engineered for high-efficiency, continuous production of hexagonal wire mesh. Its forward-and-reverse twisting mechanism produces a tighter, more stable mesh structure that resists loosening under load — ensuring consistent product quality roll after roll.
Driven by servo motors and controlled via an intuitive PLC touchscreen, the machine delivers faster output, single-operator convenience, and significantly lower energy and labor costs compared to conventional gear-driven machines.
Hexagonal wire mesh produced by this machine is widely used in poultry farming (chicken wire), garden fencing, slope protection, construction reinforcement, petroleum pipeline wrapping, and decorative screening — covering both agricultural and industrial markets worldwide.
YOUTE Automatic Hexagonal Wire Mesh Machine Specifications
| Parameter | Specification |
|---|---|
| Wire diameter range | 0.36 – 2.0 mm |
| Mesh size | 1/2″, 3/4″, 1″, 2″, 3″, 4″ (custom on request) |
| Mesh width | 2,000 – 4,000 mm (customizable within range) |
| Working speed | Reference speeds for various mesh sizes: 1/2″ mesh opening: 60-65m/hour 3/4″ mesh opening: 75-80m/hour 1″ mesh opening: 95-100m/hour 2″ mesh opening: 150-160m/hour 3″ mesh opening: 180m/hour |
| Motor | 7.5kW + 3.8kW + 3.8kW + 3.8kW |
| Voltage | Customizable to local supply standards |
| Operator requirement | 1 persons |
| Dimension | 4.13-6.43×1.1×1.6 m |
| Weight | 3.0-5.0 T |
| Raw material | Galvanized, PVC-coated, copper wire, black annealed wire |
If your production requires multiple aperture sizes, please specify each at the time of order.
A Full Production Line Overview

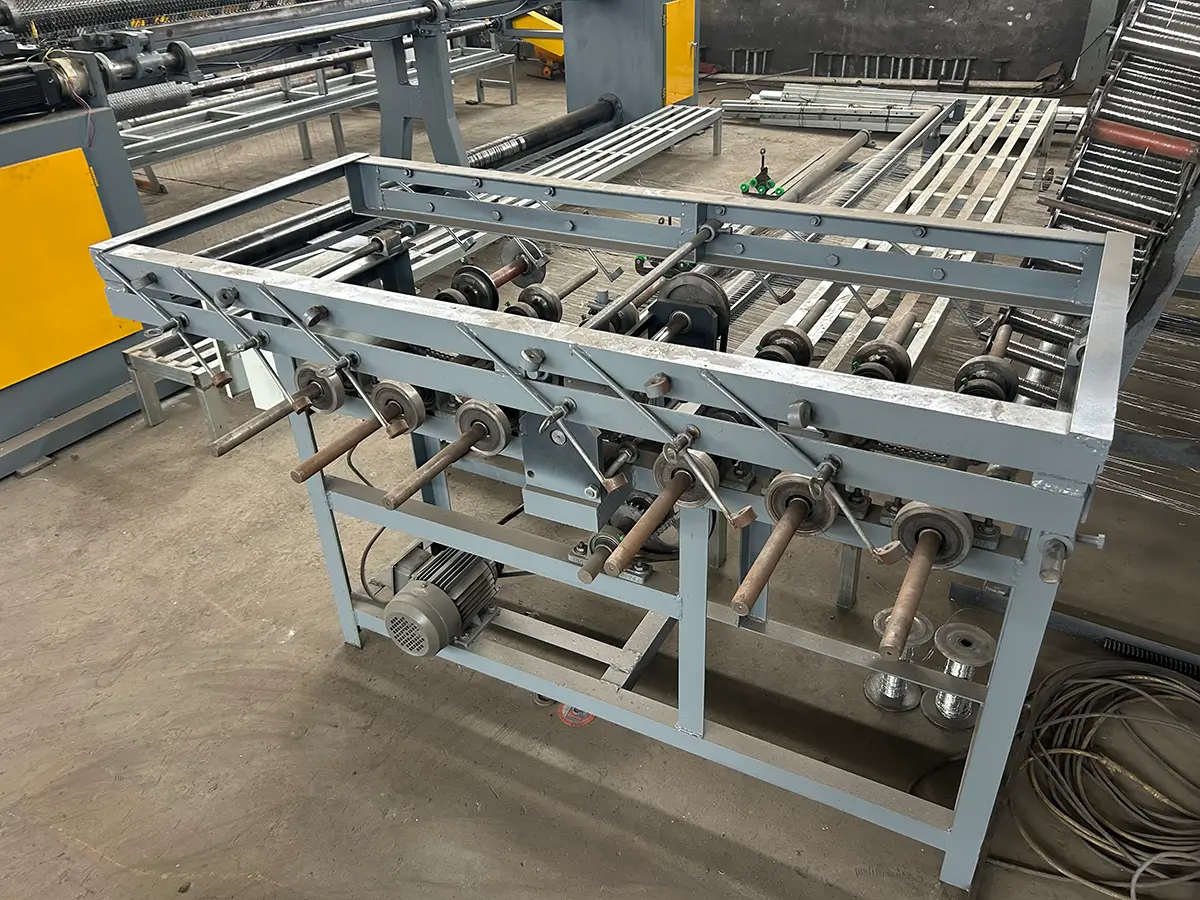

1. Bobbin Winder
Designed as a key auxiliary device for hexagonal wire mesh production, the Wire Bobbin Winding Machine rewinds large wire coils onto standard bobbins for smooth, consistent feeding into the weaving machine.

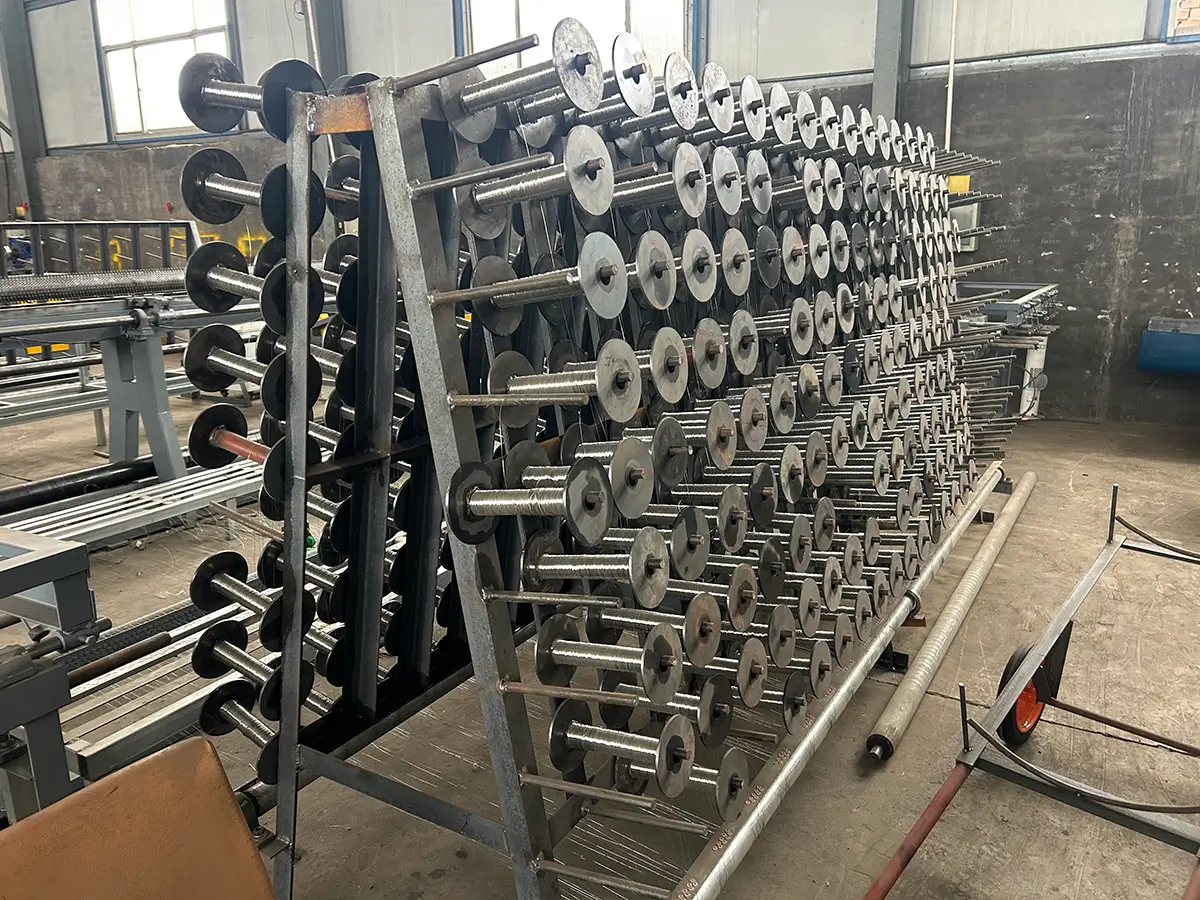

2. Wire Reel Stand
The Wire Reel Stand is a key auxiliary device in the hexagonal wire mesh production line. It holds multiple wire bobbins in place, ensuring smooth, consistent, and tension-controlled wire feeding into the machine.

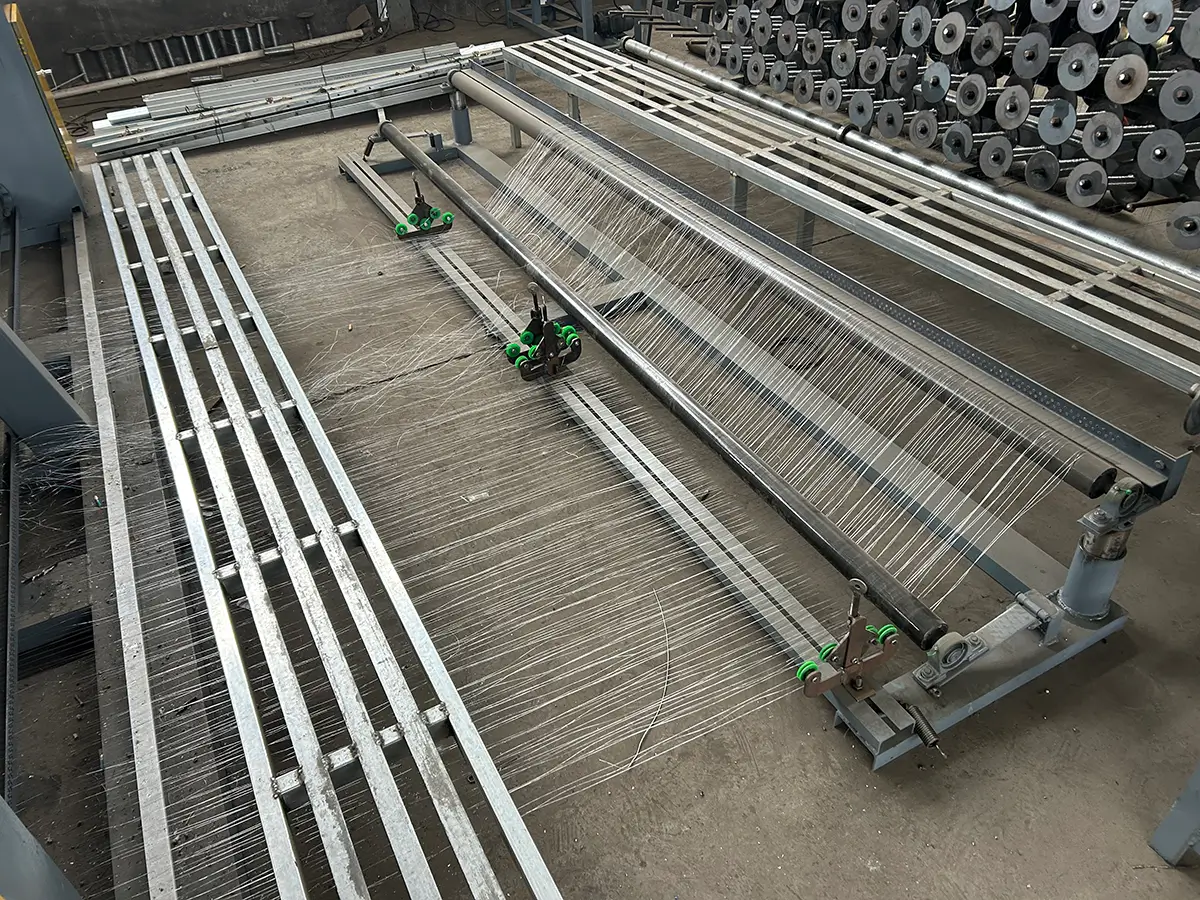

3. Wire Guide Plate
The Wire Guide Plate is a critical auxiliary component in the hexagonal wire mesh production line. Positioned between the wire reel stand and the machine, it aligns and tensions multiple wires simultaneously.

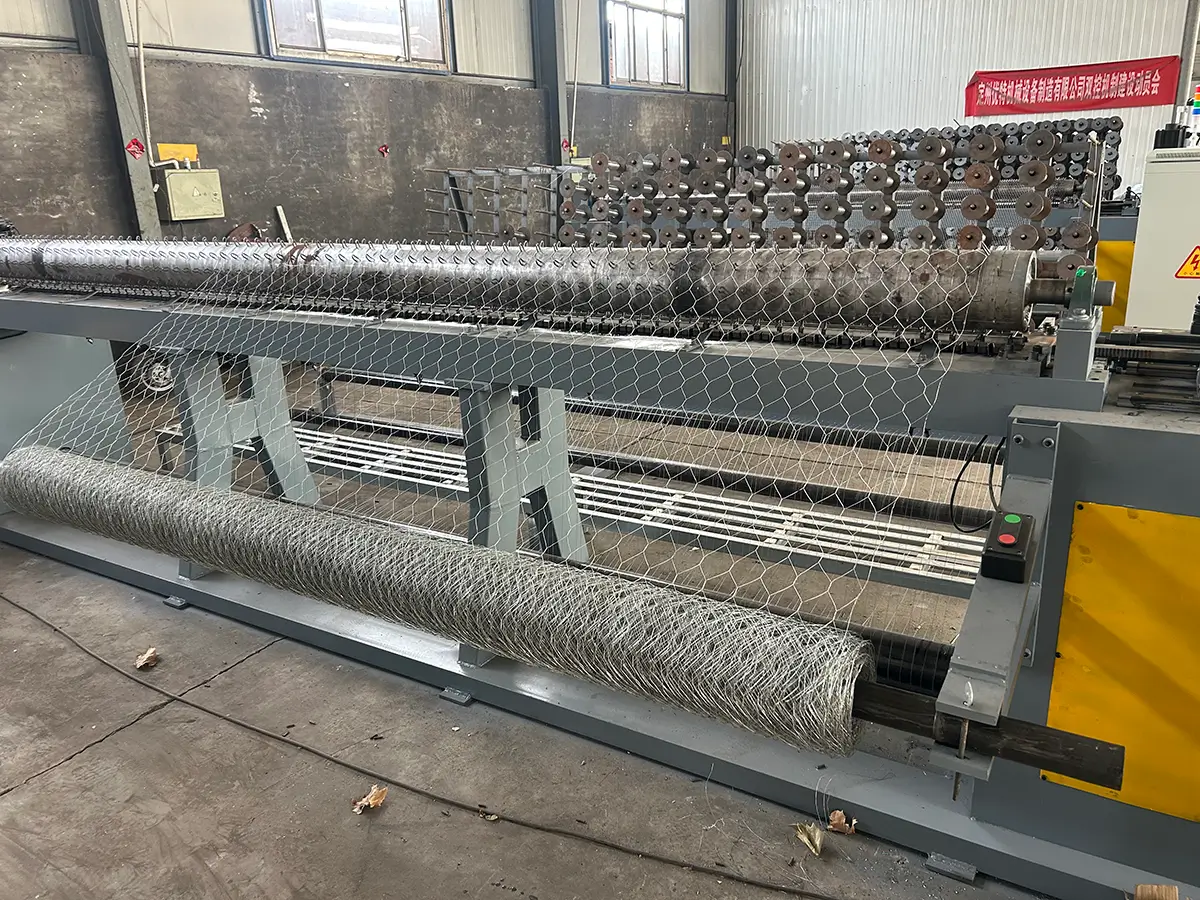

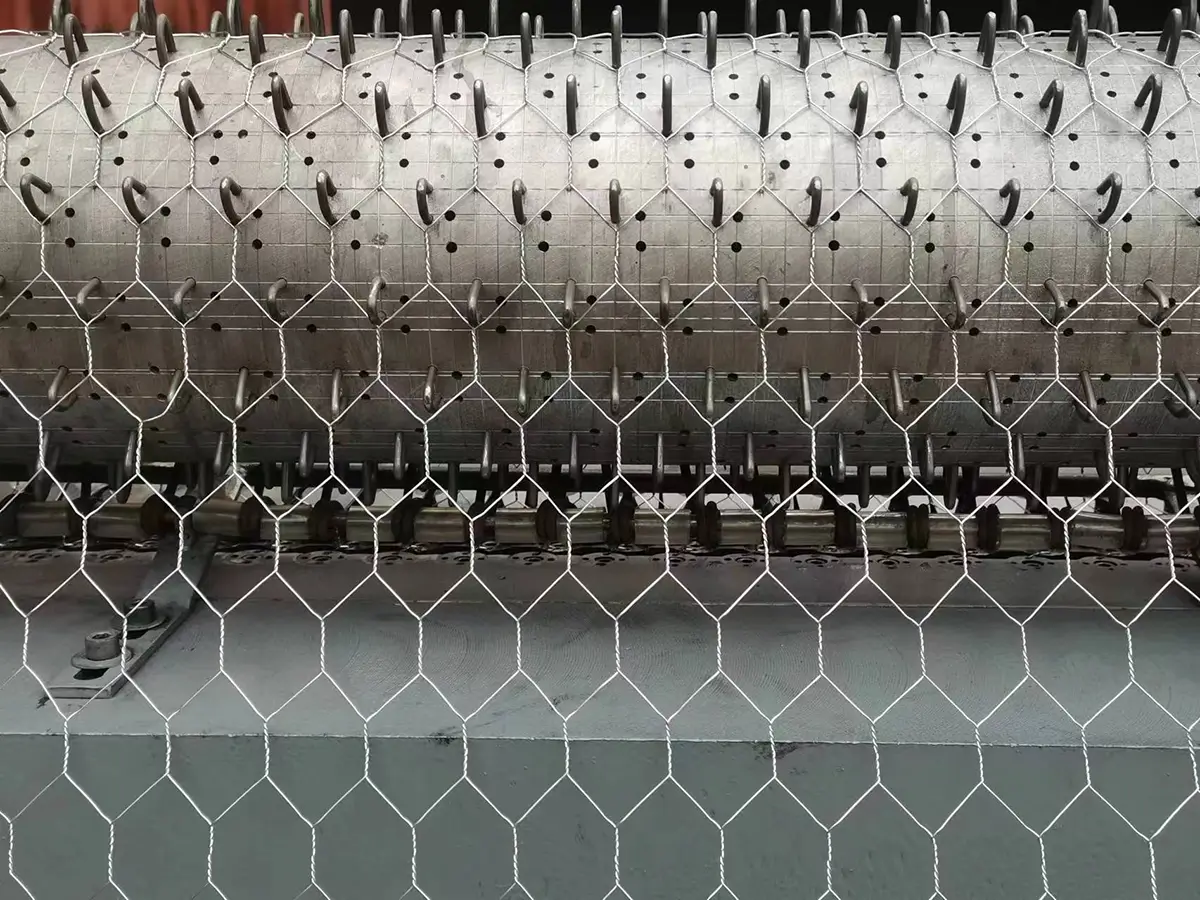

4. Mesh Weaving
Raw wire is fed from the wire reel stand through the wire guide plate and into the machine, where the forward-and-reverse twisting process weaves the wires into a tight, uniform hexagonal mesh structure.

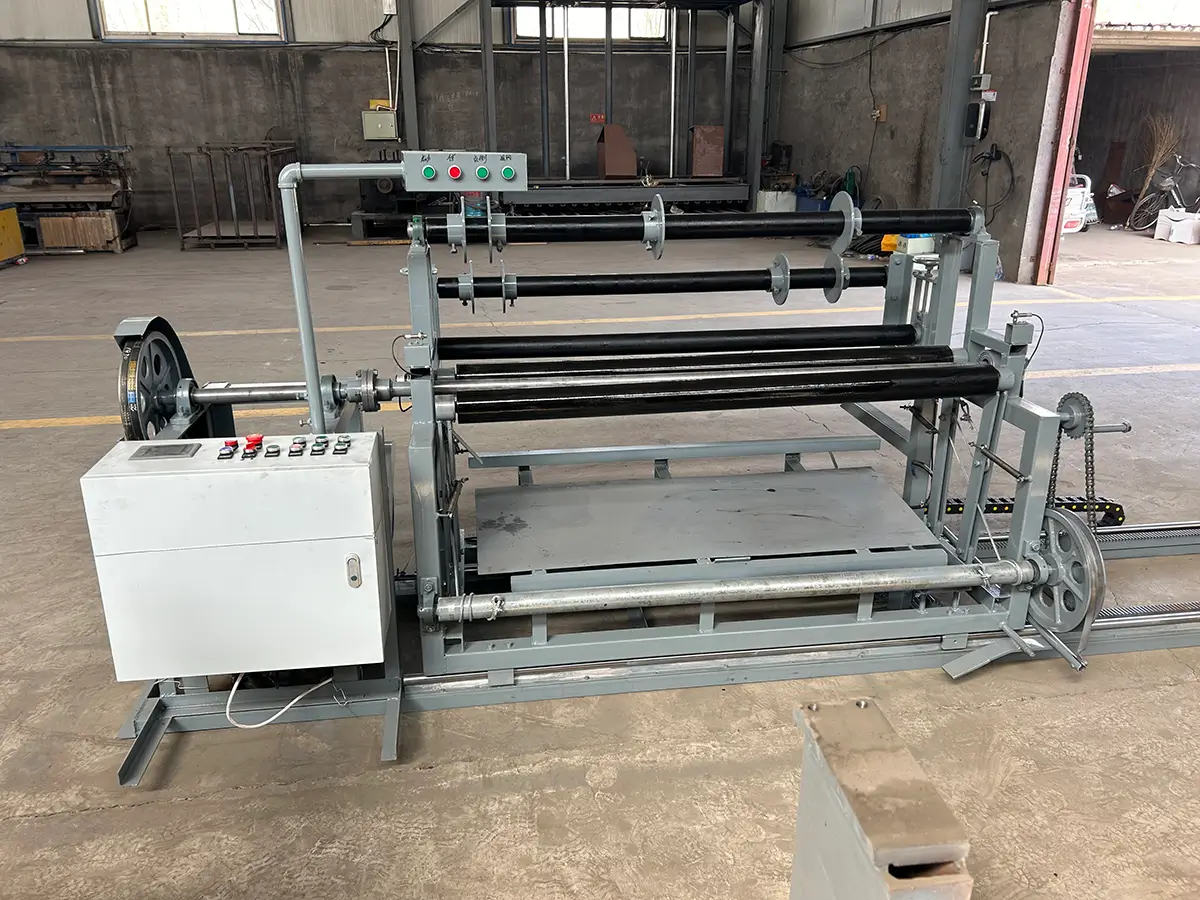

5. Coiling & Packaging
Once the hexagonal wire mesh is woven, it is transferred to the mesh coiling machine, which automatically rolls the finished mesh to a specified length — ready for compact packaging and efficient shipping.

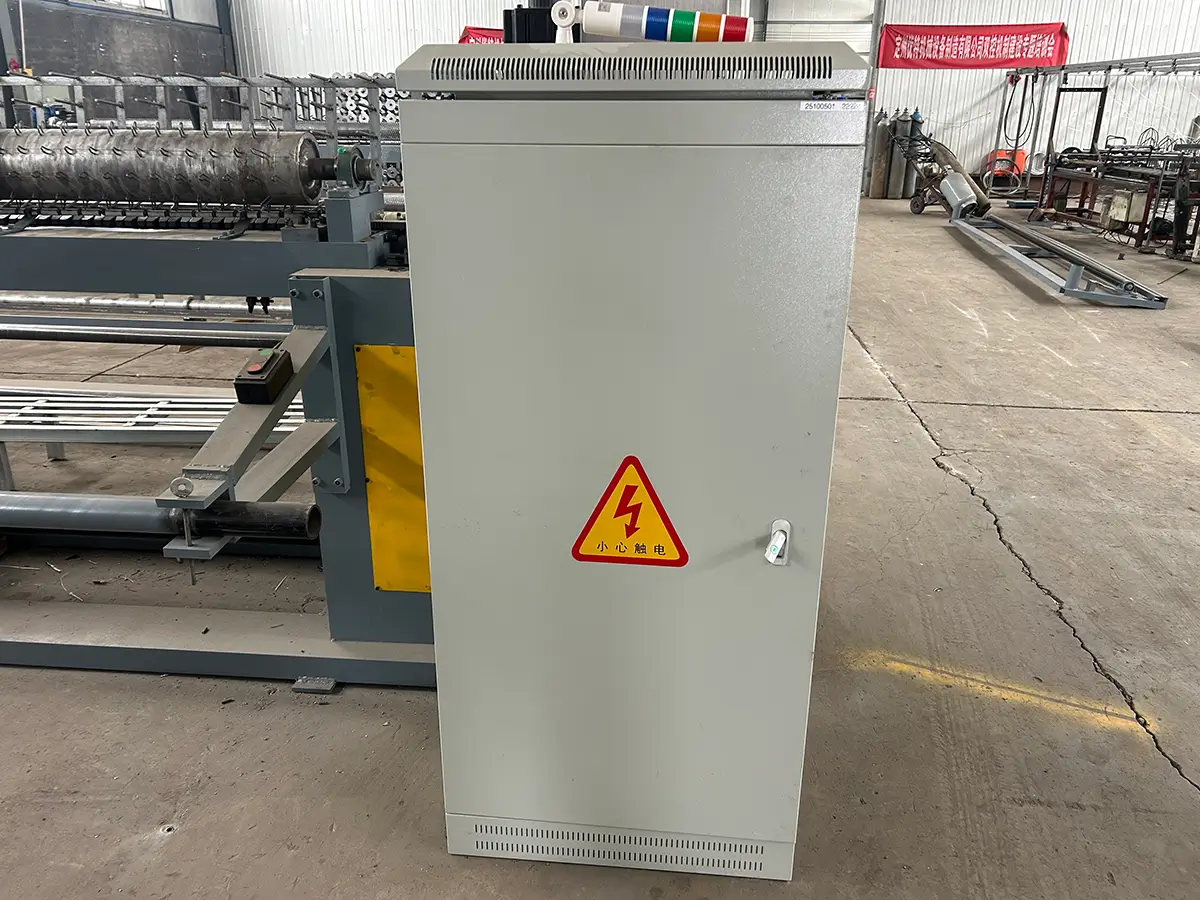

6. PLC Control
The Automatic Hexagonal Wire Mesh Machine features an integrated PLC servo control cabinet designed for dustproof performance, anti-interference stability, and easy maintenance — with synchronized control of all auxiliary equipment.

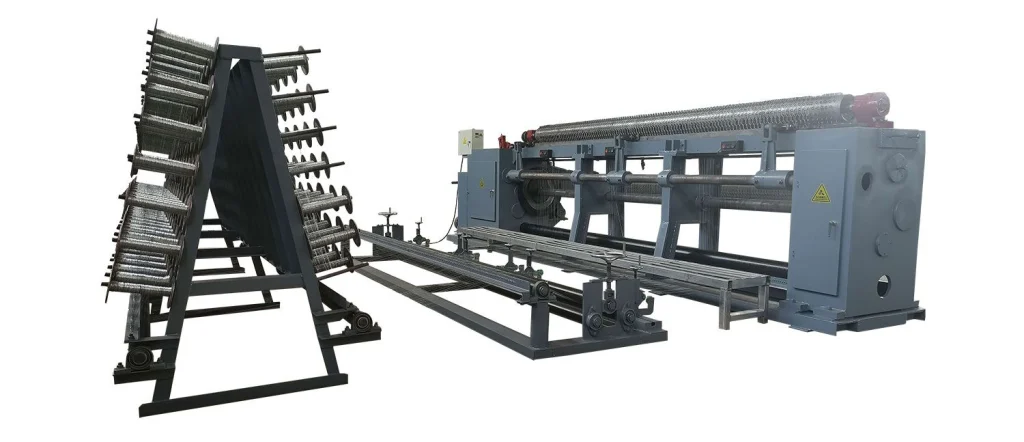

Production Line Layout and Workshop Requirements
The complete CNC Hexagonal Wire Mesh production line consists of the wire bobbin winding machine, wire reel stand, wire guide plate, CNC hexagonal wire mesh machine, and mesh coiling machine. Each component is integrated into a single continuous workflow — from raw wire input to finished mesh roll output.
Automatic Hexagonal Wire Netting Machine Production Video
This footage shows the YOUTE Automatic Hexagonal Wire Netting Machine completing a full automated production cycle — wire feed from spool rack, synchronized twisting across the full weaving width, and continuous mesh panel output at operating speed.
Why Choose YOUTE Automatic Hexagonal Wire Mesh Machine
Servo Drive vs Gear Drive
Most entry-level hexagonal wire netting machines use gear-driven mechanical drive systems. Gear drive produces consistent output at fixed speeds — adequate for single-specification, moderate-volume production.
Servo drive allows variable speed control in real time, responding to wire tension variation and diameter changes without manual intervention. The result is consistent twist geometry across the full weaving width regardless of spool depletion, wire diameter variance, or shift duration — mesh quality does not drift as the shift progresses.
Full Wire Diameter Range on One Machine
At 0.36 mm to 2.0 mm, the YOUTE Automatic model covers every standard commercial hexagonal mesh specification — from fine decorative wire through to heavy agricultural fencing gauge. Producers supplying multiple market segments — poultry netting, garden mesh, boundary fencing — run all specifications on one machine without tooling changes between wire diameters.

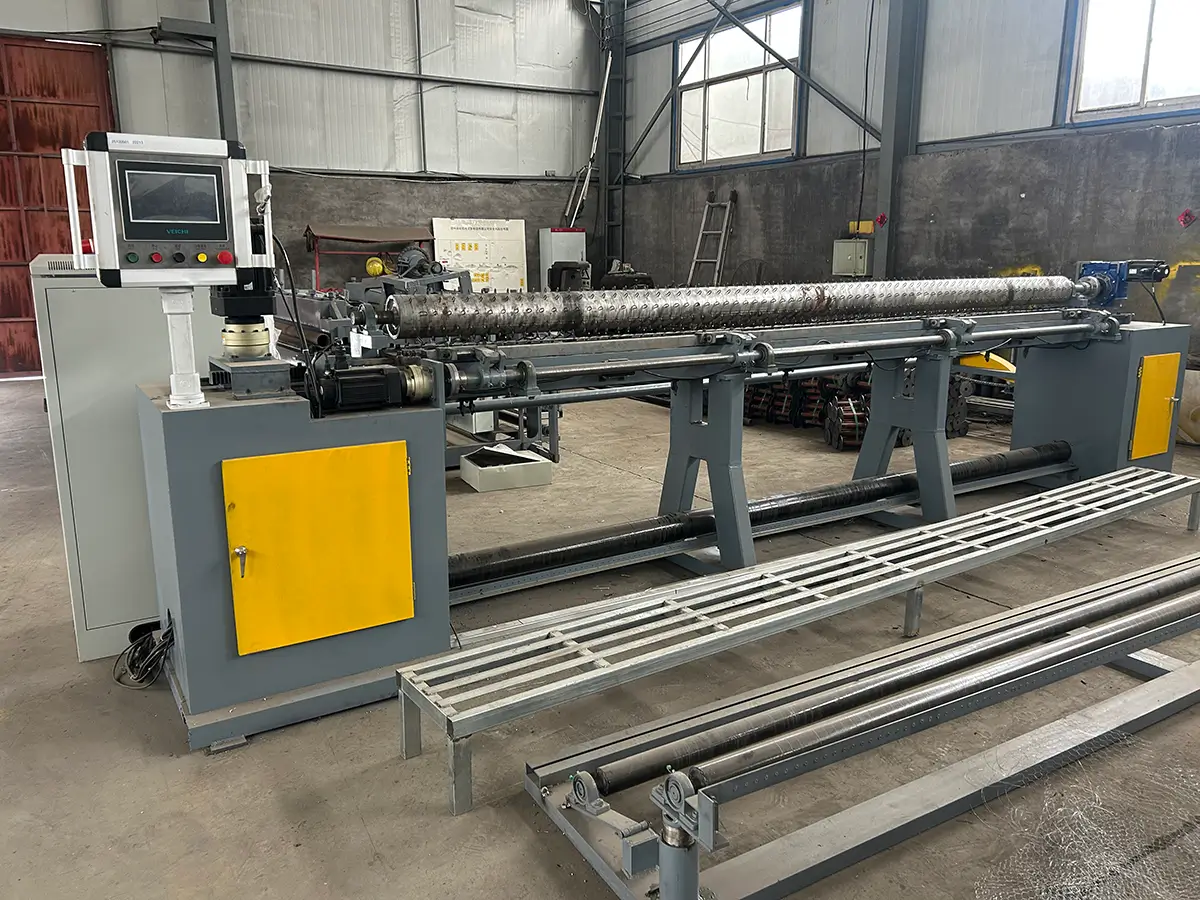

Minimal Operator Skill Required
The YOUTE Automatic model’s PLC system monitors production parameters continuously. Wire break detection triggers automatic pause — the line stops, the fault is flagged on the touchscreen, and the operator resolves the issue and restarts without calling for a technician.
Production counters log output per shift. Speed adjustments are made via touchscreen without stopping the line. For facilities where finding and retaining experienced mechanical operators is difficult, PLC automation directly reduces that dependency.
Specify the Electrical Brand Your Team Already Knows
PLC brand, servo drives, motors, and sensors are specified at the time of order. If your facility runs Siemens infrastructure, specify Siemens. If Schneider components are more readily available in your region, specify Schneider.
Your maintenance team works with familiar components — spare parts sourced locally, not shipped internationally.
Noise Below 75 dB
Mechanical gear-driven machines typically operate above 85 dB. The YOUTE Automatic model’s servo drive reduces operating noise to below 75 dB — within standard industrial noise limits for most jurisdictions without additional acoustic treatment. Relevant for facilities in urban industrial parks or markets with active labor environment regulations.
Packaging and Delivery

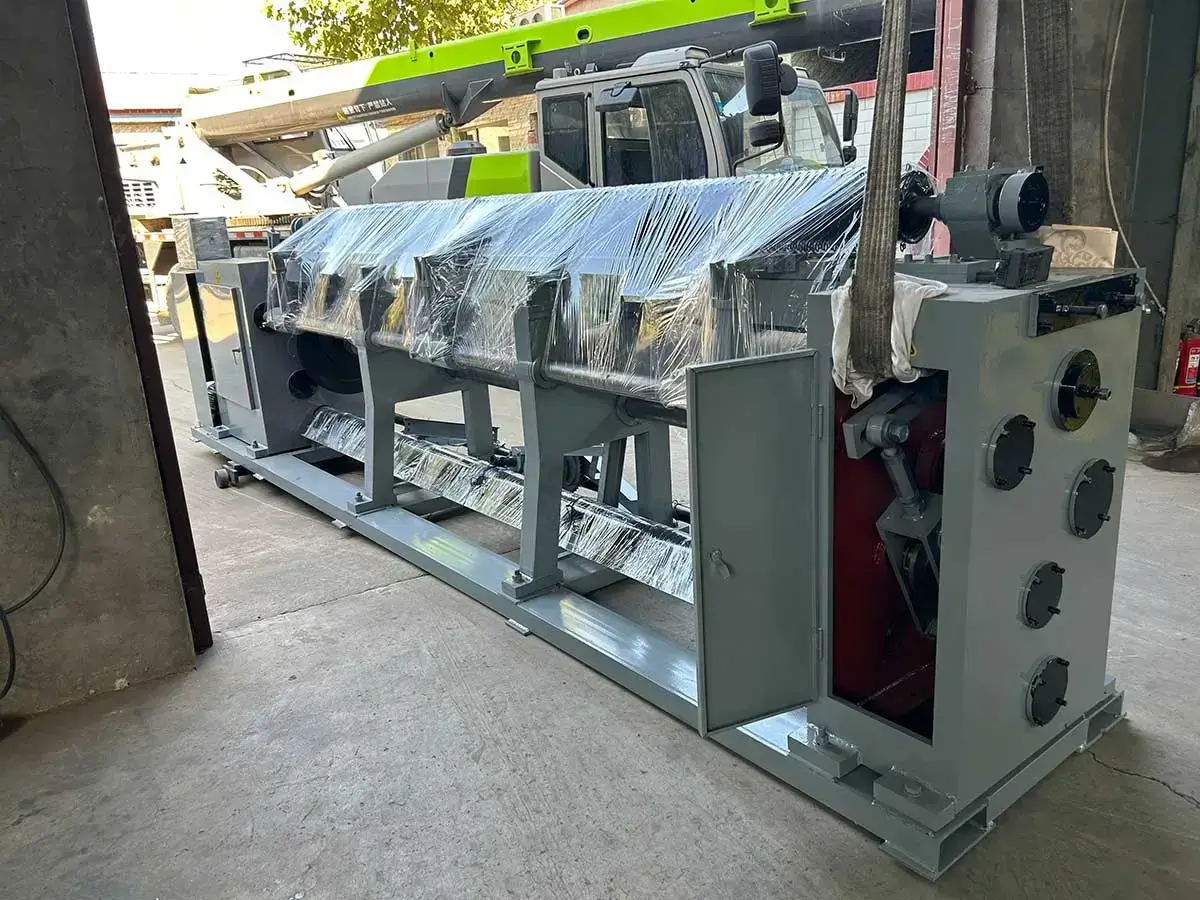

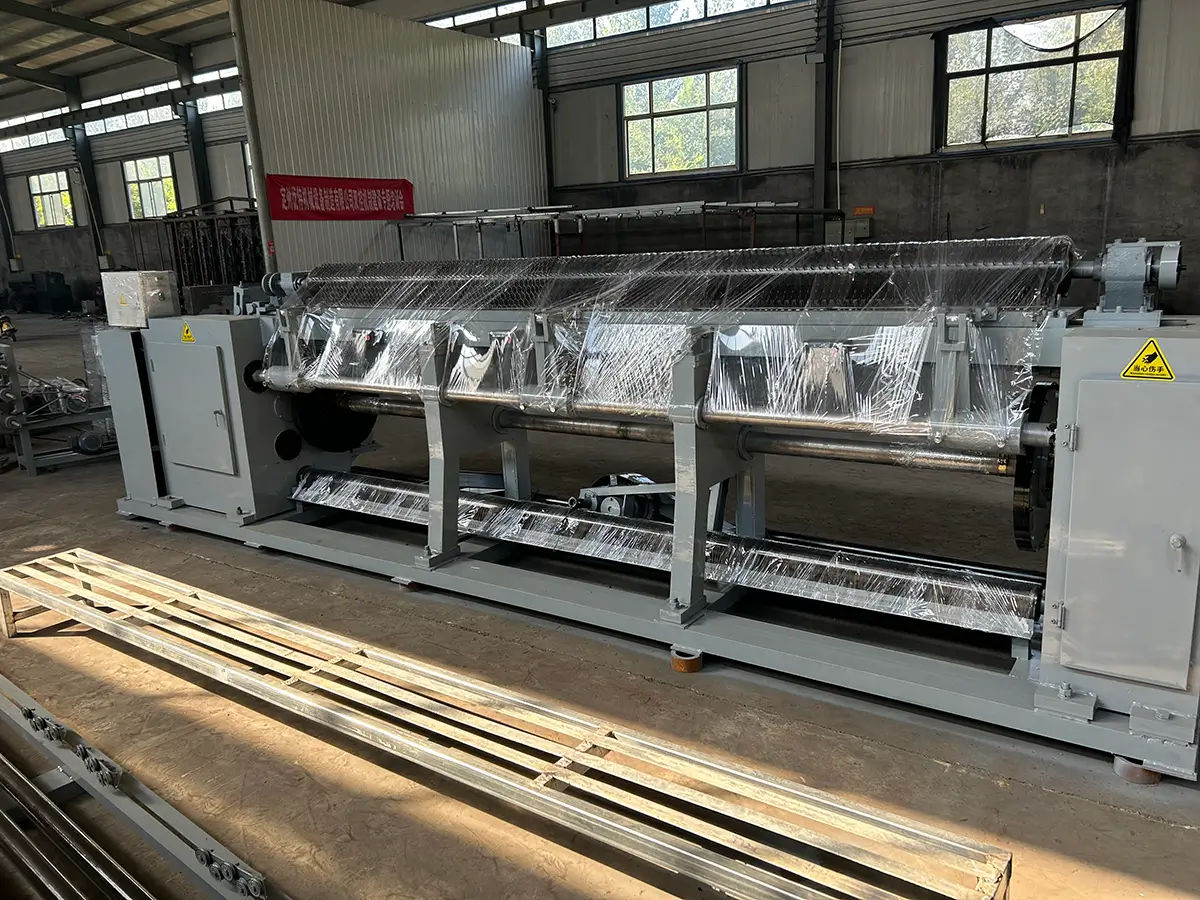

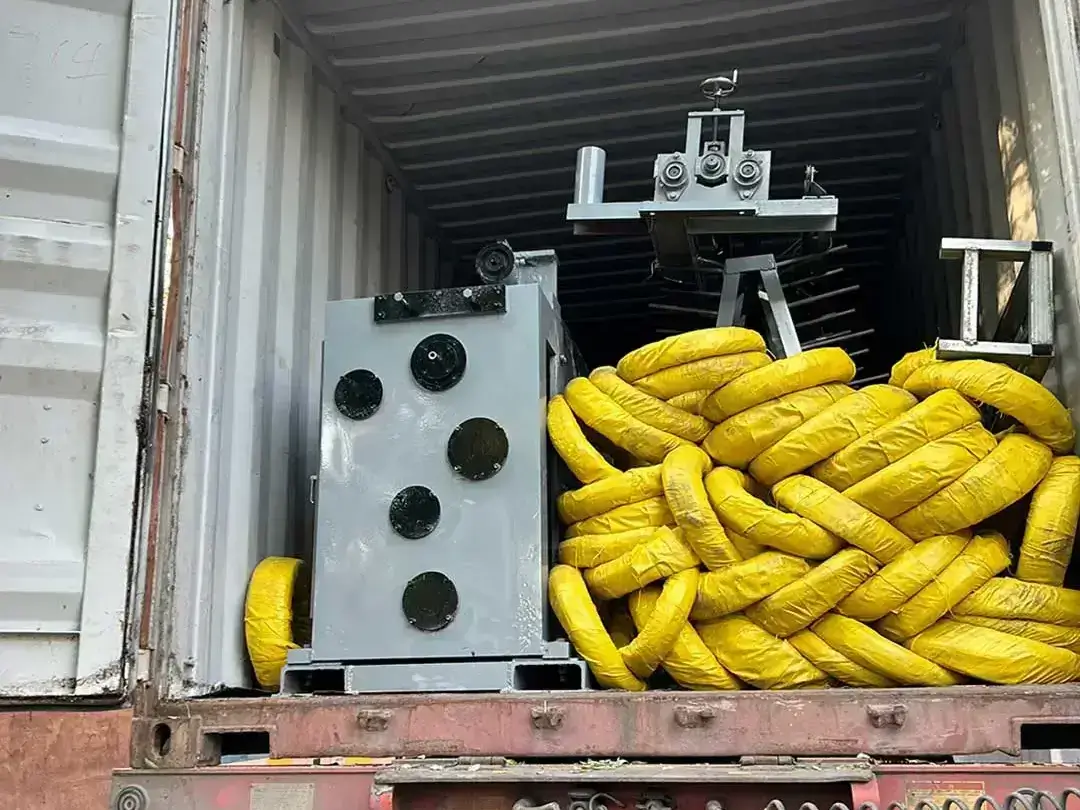

Every YOUTE Automatic Hexagonal Wire Mesh Machine is prepared for international freight at our facility. Key components — including the electrical control cabinet, touchscreen panel, painted surfaces, and core mechanical parts — are wrapped in protective film to prevent moisture, surface damage, and transit wear during sea freight and multimodal transport.
Wooden crate packaging is available on request for added structural protection.
Production lead time is 15–25 days from order confirmation. Our logistics team coordinates sea freight booking and provides shipment tracking and port arrival notification through to destination.
