Horizontal Gabion Mesh Machine Description
Compact and Cost-Effective Horizontal Gabion Mesh Machine
Designed for manufacturers with limited space, budget, or short-term projects, this horizontal gabion mesh machine features a space-saving design and fast, easy operation.
It delivers precise mesh forming with minimal maintenance — perfect for starting or expanding production.
Compared to large heavy-duty gabion machines, this model can cut total production costs by up to 50% in equipment, labor, power, and space.
It can be tailored to produce standard gabion boxes used in water conservancy, road protection, and landscaping applications.
Horizontal Gabion Mesh Machine Specifications
Here are the key technical specifications of our horizontal gabion mesh machine, including mesh sizes, wire diameters, max mesh width, twist type, speed, motor power, and machine dimensions. All parameters can be customized to suit your project needs.
| Mesh Size | Wire Diameter | Max Mesh Width | Number of Twists | Production Speed | Motor Power | Weight | Dimensions (L×W×H) |
|---|---|---|---|---|---|---|---|
| 60×80 mm | 1.0 – 3.0 mm | 2000 mm | 1 / 3 / 5 | 100 m/h | 7.5 kW | 3.1 t | 4000×2100×1300 mm |
| 60×80 mm | 1.0 – 3.0 mm | 3000 mm | 1 / 3 / 5 | 100 m/h | 7.5 kW | 4.2 t | 5000×2100×1300 mm |
| 60×80 mm | 1.0 – 3.0 mm | 4000 mm | 1 / 3 / 5 | 100 m/h | 7.5 kW | 5.3 t | 6000×2100×1300 mm |
| 80×100 mm | 1.0 – 3.0 mm | 2000 mm | 1 / 3 / 5 | 100 m/h | 7.5 kW | 3.1 t | 4000×2100×1300 mm |
| 80×100 mm | 1.0 – 3.0 mm | 3000 mm | 1 / 3 / 5 | 100 m/h | 7.5 kW | 2.2 t | 5000×2100×1300 mm |
| 80×100 mm | 1.0 – 3.0 mm | 4000 mm | 1 / 3 / 5 | 100 m/h | 7.5 kW | 5.3 t | 6000×2100×1300 mm |
| 100×120 mm | 1.0 – 3.0 mm | 2000 mm | 1 / 3 / 5 | 100 m/h | 7.5 kW | 3.1 t | 4000×2100×1300 mm |
| 100×120 mm | 1.0 – 3.0 mm | 3000 mm | 1 / 3 / 5 | 100 m/h | 7.5 kW | 4.2 t | 5000×2100×1300 mm |
| 100×120 mm | 1.0 – 3.0 mm | 4000 mm | 1 / 3 / 5 | 100 m/h | 7.5 kW | 5.3 t | 6000×2100×1300 mm |
Horizontal Gabion Mesh Machine Layout Drawing

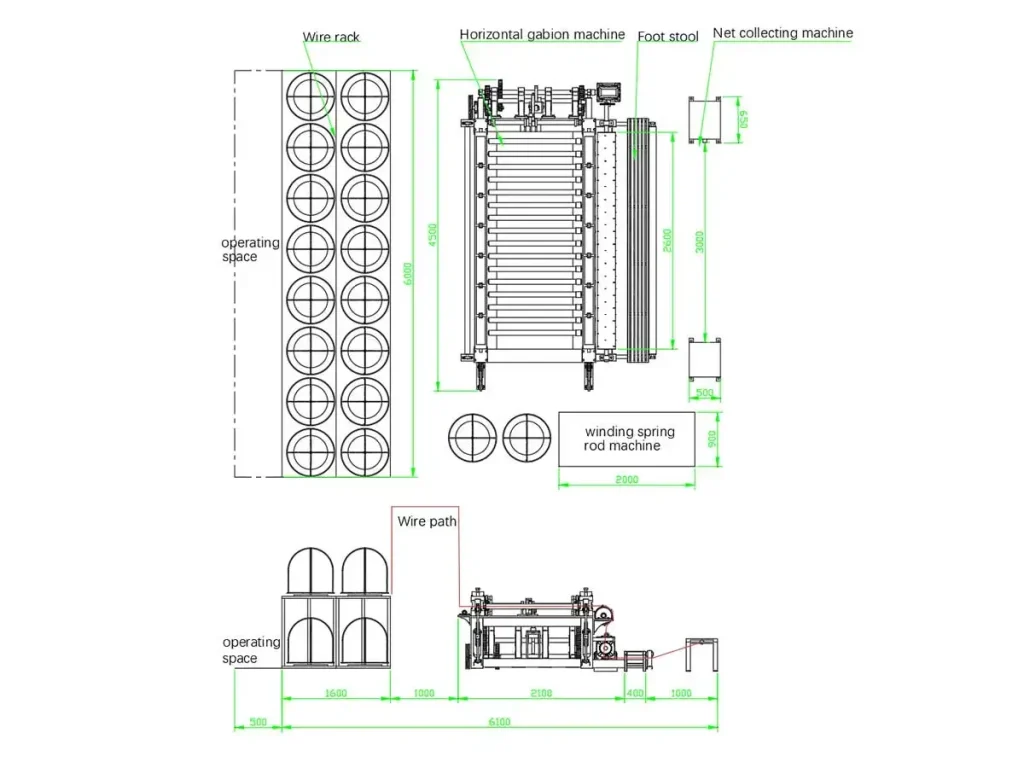

The figure below provides a layout reference to help you understand the machine configuration and workshop layout. The equipment shown in the figure includes a gabion box making machine, a mesh rolling machine, a tensioning frame, and a wire pay-off frame. For detailed layout drawings and customized technical guidance, please feel free to contact us.
The diagram above illustrates a standard layout for horizontal gabion mesh production. For compact workshops, a space-saving option with double-layer spools and overhead wire routing is also available.
Need project-specific advice? Contact us.
Features Of Horizontal Gabion Machine
Each horizontal gabion wire mesh machine line includes a wire pay-off frame, wire tension device, central netting unit, and net winding machine, all integrated in a compact horizontal layout.
It helps you save valuable factory area and reduce installation costs while keeping your production smooth and efficient.
Strong & Durable Build
Built with high-strength steel, this machine is made to last. All key parts are wear-resistant so that they can handle daily use with minimal maintenance.
High-Speed, High-Efficiency Output
Designed for continuous weaving, this machine helps you produce gabion mesh fast — ideal for big infrastructure or construction projects.
Easy to Use & Maintain
Operators can see the weaving process and handle wire breaks easily. Routine checks and upkeep are simple, keeping downtime to a minimum.
Budget-Friendly Performance
Compared to heavy-duty models, this horizontal version gets the job done while saving on equipment costs, space, labor, and energy use.
Case OF Horizontal Gabion Mesh Machine
Our gabion wire mesh machines are widely used for riverbank protection, slope reinforcement, road construction, retaining walls, and other civil engineering or infrastructure projects.
The production video below shows how our gabion mesh production line operates on site, providing a glimpse into the manufacturing process and finished mesh quality.
If you want to see more project examples, explore real application sites, or get expert guidance to select the perfect fully automatic horizontal gabion making machine for your needs, please contact us — we’re ready to provide customized solutions for your project.
Dispatch of Gabion Mesh Machine

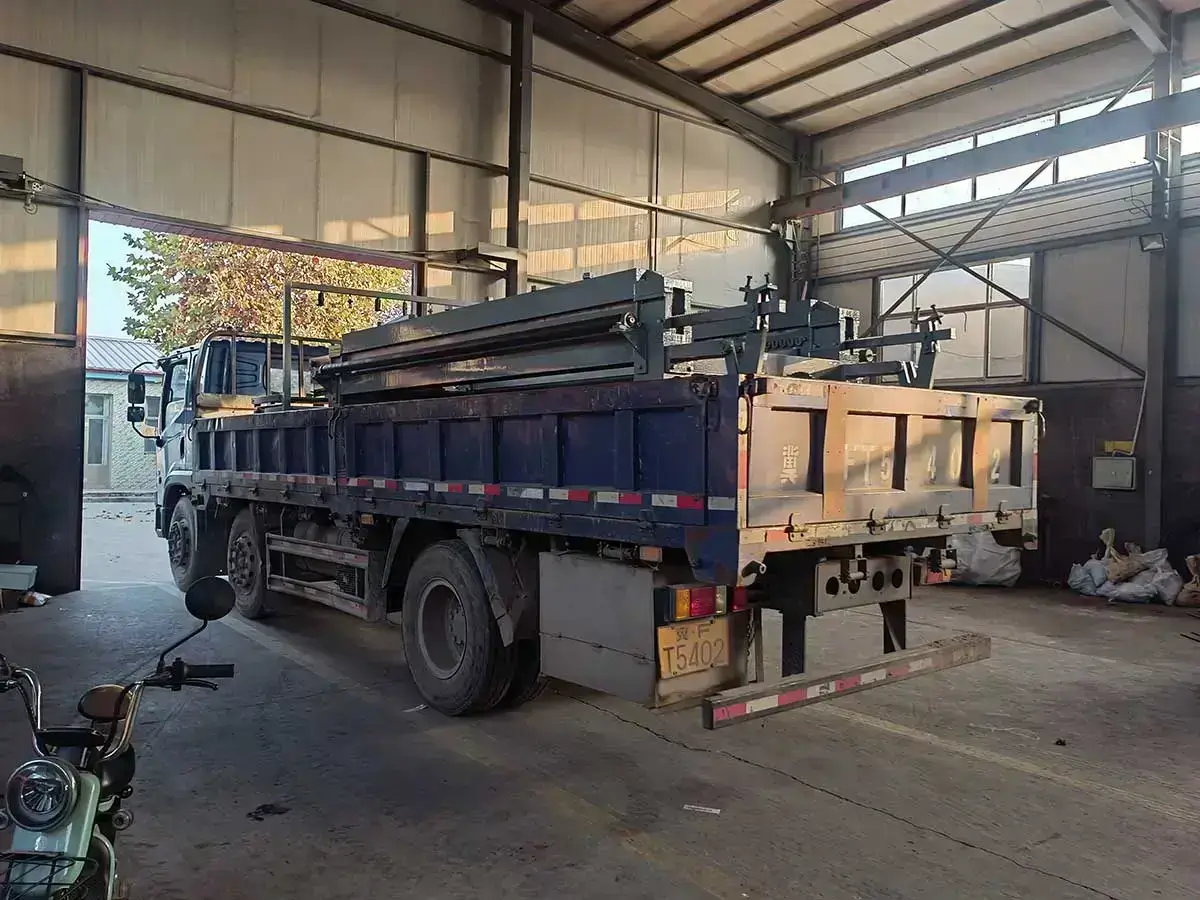

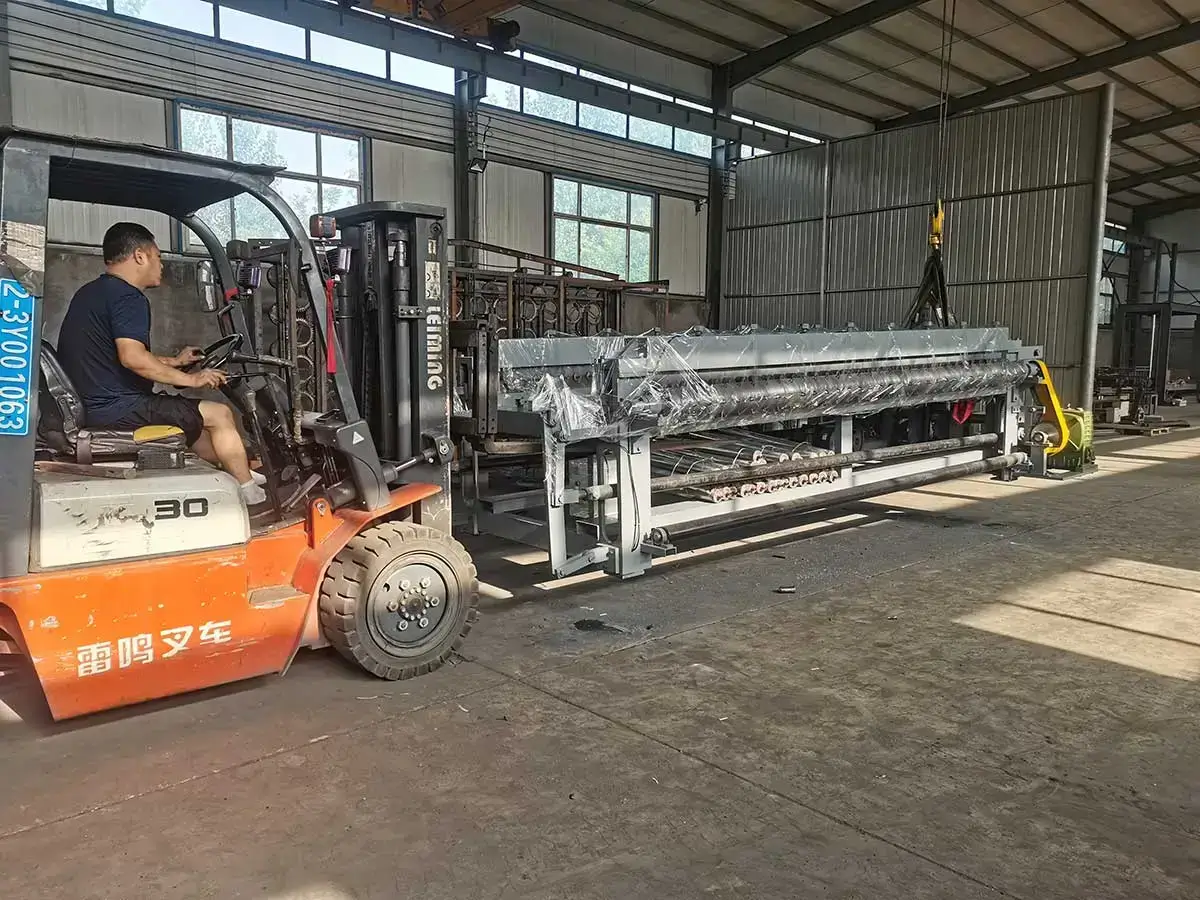

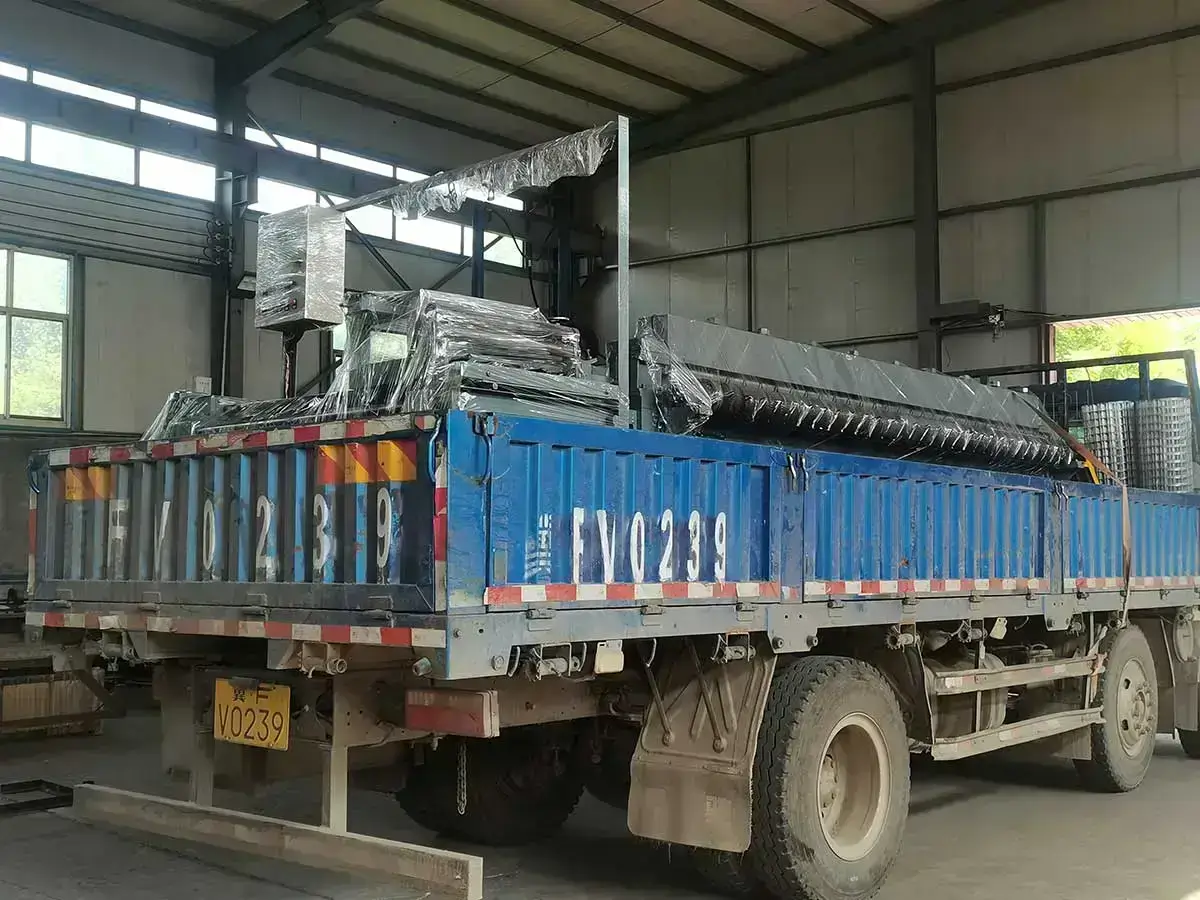

Each horizontal gabion box machine is carefully packed in durable wooden crates or wrapped with protective film to guarantee safe international delivery.

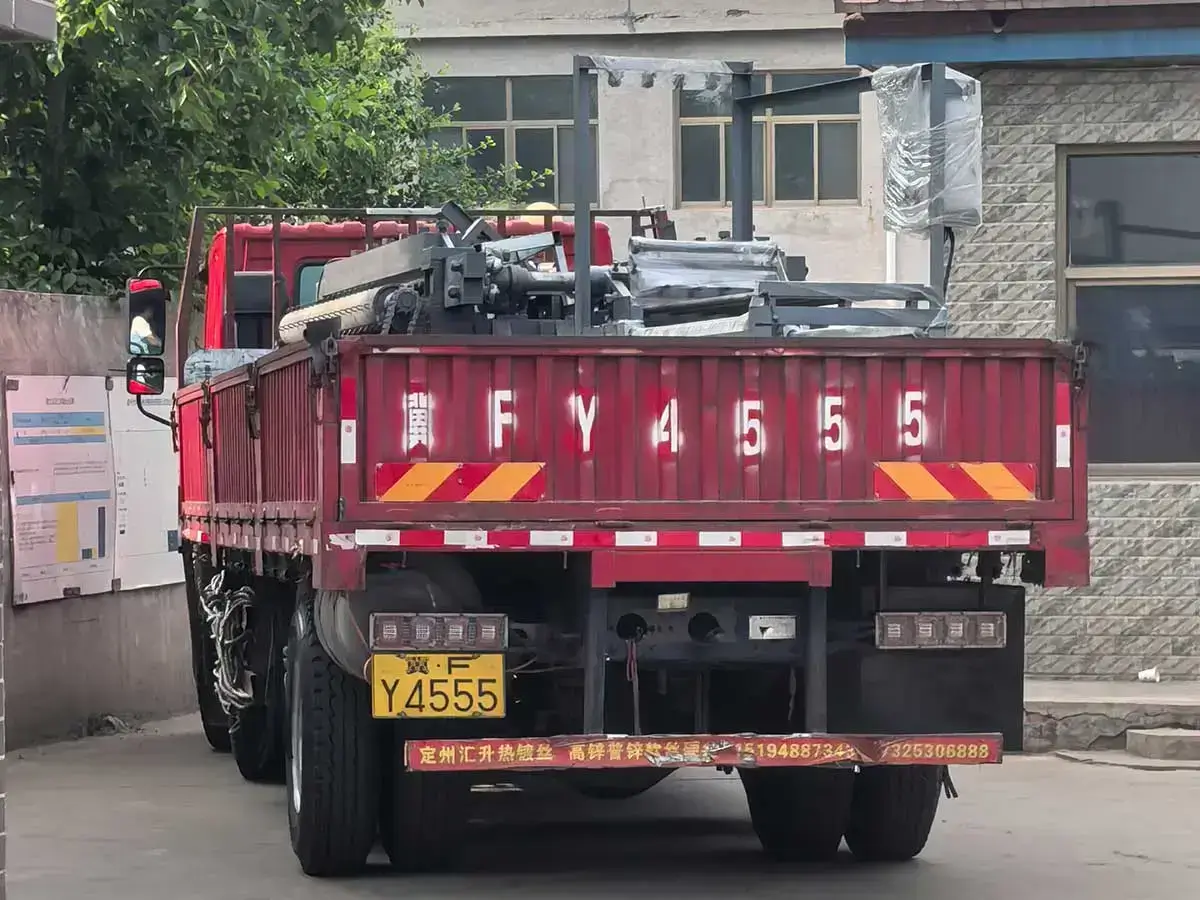

We offer flexible shipping options by sea or rail to ensure your gabion box making machine arrives securely around the world.
