Explore Our Hexagonal Wire Mesh Machine
Hexagonal wire mesh machines produce hexagonal mesh for poultry fencing, deep-sea aquaculture, pipeline insulation, and light agricultural applications.
With multiple twist options and adjustable mesh sizes, they ensure consistent quality and high output for light to medium wire gauges.

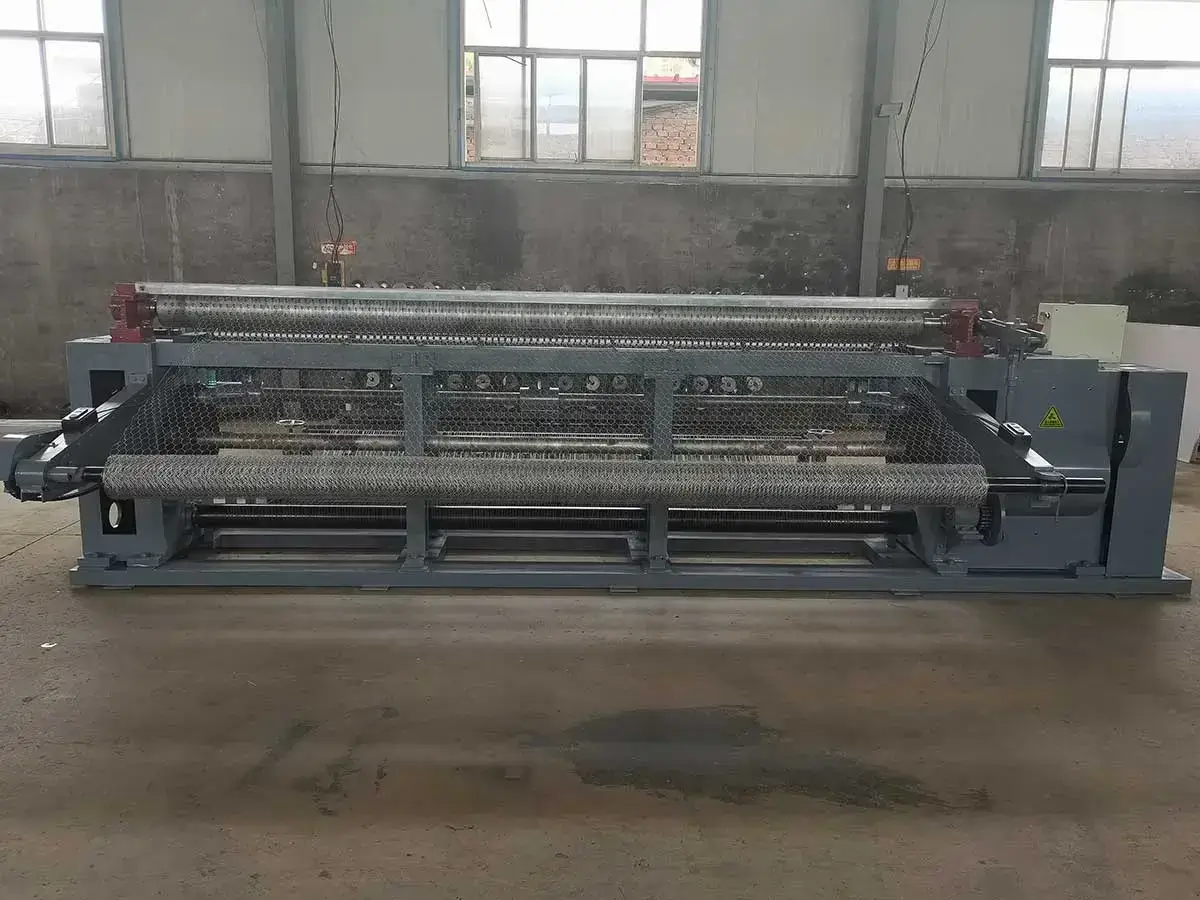

Hexagonal Chicken Mesh Machine
Production of forward-reverse twisted hexagonal wire mesh: pure mechanical control, smooth operation, and power saving.
PLC Hexagonal Wire Netting Machine
Production of forward-reverse twisted hexagonal mesh. PLC controlled for precise automation and easy operation.

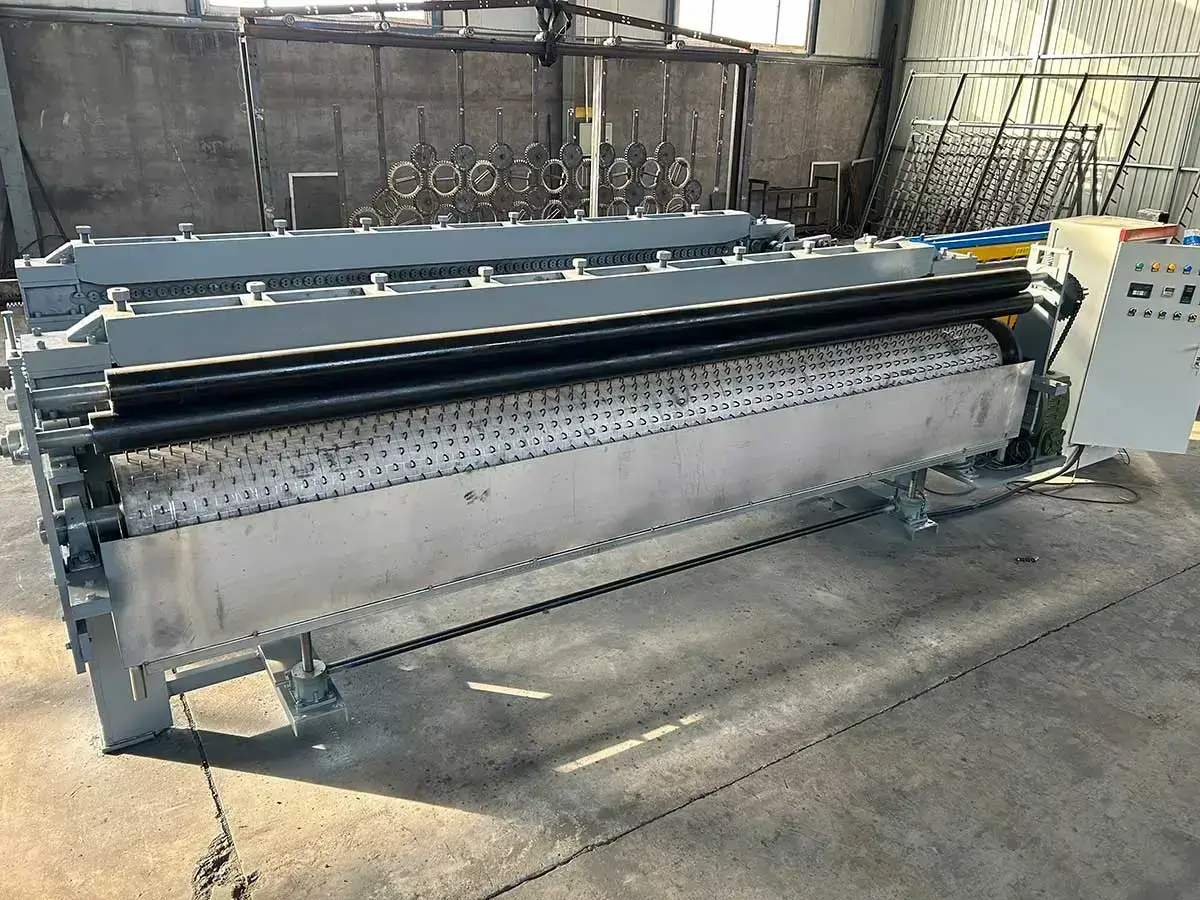

PET Hhexagonal Wire Mesh Machine
The PET polyester hexagonal wire mesh machine for producing various mesh sizes for deep-sea aquaculture nets.
Small Hexagonal Wire Mesh Machine
Positively twisted small hexagonal mesh machine for Galv. & Coated Wire, with mesh sizes down to 3/8″ (10 mm).
Which Hexagonal Wire Mesh Machine is Right for You?
Choosing the right hexagonal wire mesh machine depends on your production needs, mesh sizes, and applications.
Use this quick comparison to find the best fit for your fencing, poultry, aquaculture, or industrial mesh projects.
| Parameter | Mechanical Hexagonal Wire Mesh Machine | PLC Hexagonal Wire Mesh Machine | PET Hexagonal Wire Mesh Machine | Small Hexagonal Wire Mesh Machine |
|---|---|---|---|---|
| Typical Use | Standard fencing mesh, Light slope protection | Standard fencing mesh, Light slope protection | Deep-sea aquaculture nets, Coastal fish farming cages, Lightweight ecological restoration mesh | Fine mesh for poultry, small cages |
| Control System | Pure mechanical drive | PLC + Touchscreen | Pure mechanical drive (optional PLC + touchscreen) | Pure mechanical drive (optional PLC + touchscreen) |
| Mesh Size | 1/2″ to 4″ | 1/2″ to 4″ | 30 mm to 100 mm | 3/8″ to 2.5″ |
| Wire Diameter | 0.35 mm to 2.2 mm | 0.35 mm to 2.2 mm | 2.0 mm to 4.0 mm | 0.35 mm to 1.8 mm |
| Wire Material | Galvanized wire, PVC-coated wire, Copper wire, etc. | Galvanized wire, PVC-coated wire, Copper wire, etc. | Polyester (PET) wire | Galvanized wire, PVC-coated wire, Copper wire, etc. |
| Twist Type | forward-reverse twisted | forward-reverse twisted | 3 twists | 3 twists or 5 twists |
| Max Netting Width | 1000 mm to 4200 mm | 1000 mm to 4200 mm | 1000 mm to 3000 mm | 1000 mm to 2300 mm |
| Production Efficiency | 60 mesh/min | 60 mesh/min | 60 mesh/min | 60 mesh/min |
| Motor Power | 2.2 kw | 14 kw | 30 kw to 46.5 kw | 3 kw to 6.75 kw |
| Machine Weight | 4 t to 5 t | 4 t to 5 t | 9 t to 12 t | 3 t to 4 t |
Get your hexagonal wire mesh machine today!
Hexagonal Wire Mesh Machine Applications
Agricultural & Poultry Fencing Mesh
Forward-reverse twisted hexagonal wire mesh, also known as hexagonal chicken wire mesh or hexagonal fence mesh.
It is widely used in the agricultural and livestock fencing industry for poultry houses, chicken coops, duck pens, farm fencing, and small animal enclosures, providing safe and durable fencing solutions.
Deep-Sea Aquaculture Netting
In deep-sea aquaculture, PET twisted hexagonal mesh, also known as turtle shell mesh, is made from high-strength polyester monofilament.
It offers excellent water flow, reduced biofouling, and easy maintenance, making it ideal for offshore fish cages, smart net pens, and large marine enclosures.
Floral Arrangement Mesh
For decorative and floral design, hexagonal wire mesh is formed into frames or structures to support fresh flowers and greenery.
It can be shaped into heart or circle forms for wedding backdrops, hung from ceilings for suspended floral installations, or rolled into mesh tubes filled with moss to create “green columns” for gardens and interior spaces.

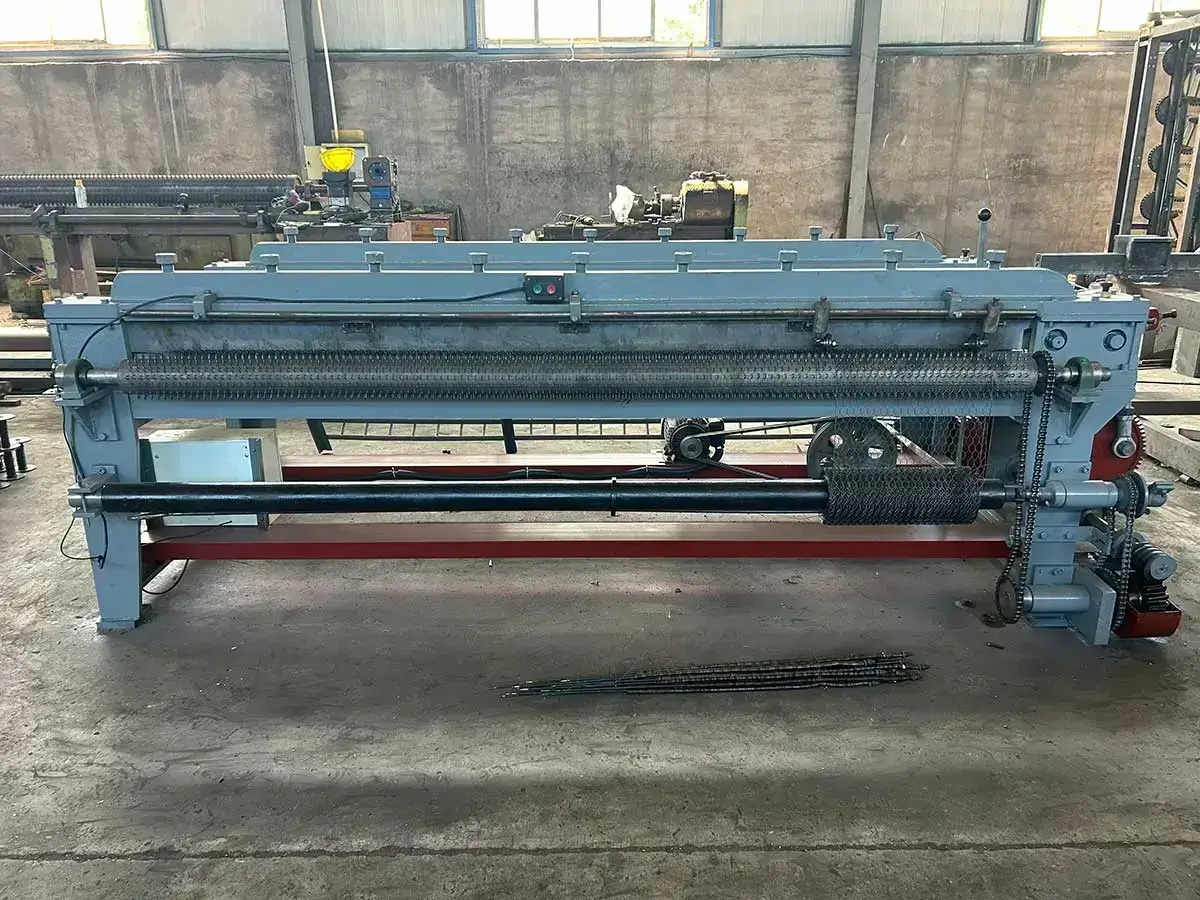

Pipe Insulation Mesh
For pipeline insulation in power plants and boilers, fine-gauge hexagonal wire mesh (1–2 mm wire, 2–3 cm mesh size) is wrapped around pipes to hold glass wool and other insulating materials in place, preventing detachment and improving thermal performance.
Masonry & Wall Reinforcement Mesh
For building reinforcement, hexagonal wire mesh is embedded in plaster layers or masonry joints to disperse tensile stress from wind loads and thermal expansion, helping prevent wall cracking.
It provides a cost-effective, durable solution for reinforcing masonry, concrete, and lightweight partition walls.
Pipe Insulation Mesh
For pipeline insulation in power plants and boilers, fine-gauge hexagonal wire mesh (1–2 mm wire, 2–3 cm mesh size) is wrapped around pipes to hold glass wool and other insulating materials in place, preventing detachment and improving thermal performance.
Agricultural & Poultry Fencing Mesh
Forward-reverse twisted hexagonal wire mesh, also known as hexagonal chicken wire mesh or hexagonal fence mesh.
It is widely used in the agricultural and livestock fencing industry for poultry houses, chicken coops, duck pens, farm fencing, and small animal enclosures, providing safe and durable fencing solutions.
Floral Arrangement Mesh
For decorative and floral design, hexagonal wire mesh is formed into frames or structures to support fresh flowers and greenery.
It can be shaped into heart or circle forms for wedding backdrops, hung from ceilings for suspended floral installations, or rolled into mesh tubes filled with moss to create “green columns” for gardens and interior spaces.
Masonry & Wall Reinforcement Mesh
For building reinforcement, hexagonal wire mesh is embedded in plaster layers or masonry joints to disperse tensile stress from wind loads and thermal expansion, helping prevent wall cracking.
It provides a cost-effective, durable solution for reinforcing masonry, concrete, and lightweight partition walls.
Deep-Sea Aquaculture Netting
In deep-sea aquaculture, PET twisted hexagonal mesh, also known as turtle shell mesh, is made from high-strength polyester monofilament.
It offers excellent water flow, reduced biofouling, and easy maintenance, making it ideal for offshore fish cages, smart net pens, and large marine enclosures.
Hexagonal Wire Mesh Machine Use Cases
Clients trust our hexagonal wire mesh machines in 30+ countries, including India, Africa, Southeast Asia, and the Middle East.
See how businesses worldwide use our machines to produce hexagonal netting for fencing, insulation, aquaculture, and more.
Renovation Mechanical Hexagonal Wire Mesh Machine
The customer originally purchased a mechanical hexagonal wire mesh machine designed for 2″ mesh. Due to new project requirements, they needed to reduce the mesh size to 1/2″.
To meet this renovation need, we upgraded the core twisting assembly, replaced the old gear and transmission system, and installed a higher power motor. These modifications allow the machine to efficiently weave 1.5 mm galvanized wire while maintaining stable performance at smaller mesh sizes.

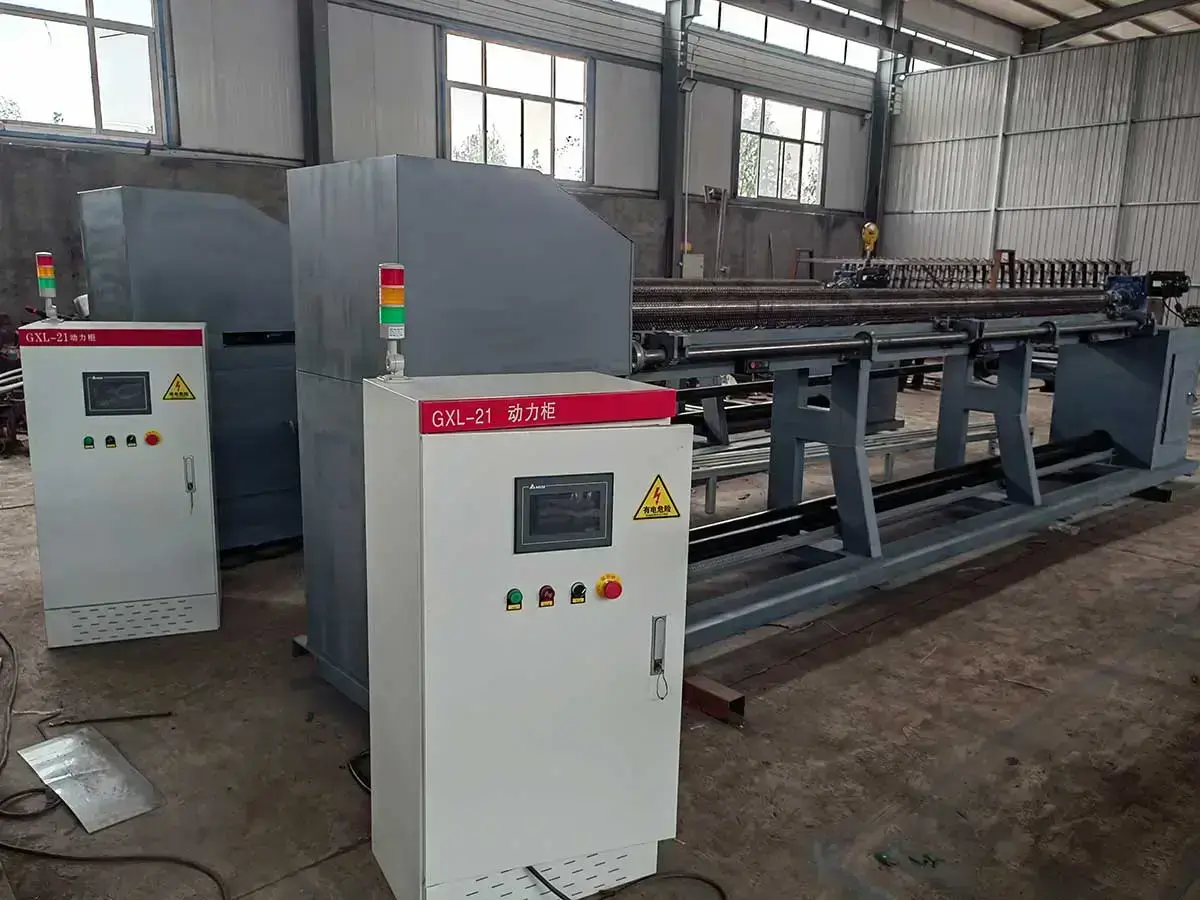

Procurement of PLC Forward-Reverse Twisted Hexagonal Mesh Machine
The customer’s newly established smart factory required centralized management of all production lines, so they purchased four PLC forward-reverse twisted hexagonal mesh machines.
Each machine is equipped with a touchscreen interface and a servo-driven motion control system. To meet the factory’s digitalization goals, we integrated the equipment’s production data into the customer’s network in their specified format, enabling real-time remote monitoring and centralized management of production status.
Custom PLC polyester hexagonal wire mesh machine
A certain aquaculture company aims to develop a new type of PET hexagonal net with greater tensile strength for use as deep-sea aquaculture nets.
To meet this requirement, our engineering team upgraded the standard polyester hexagonal mesh machine with a dedicated PET filament straightening unit, threading system, cutting module, and bending mechanism. We also developed a custom CNC control system to ensure precise, reliable operation of the entire process.
Batch manufacturing a small hexagonal mesh machine
The customer’s factory has entered the small-aperture hexagonal mesh market and needs multiple machines capable of producing fine-gauge, forward-twist mesh.
We recommended our small hexagonal mesh machine series. These compact units have a minimal footprint, are easy to operate, and produce flat, consistent mesh panels that help customers improve product quality and competitiveness. With this equipment, they can rapidly expand the production capacity of small-aperture mesh and capture a larger market share.
Our versatile, customizable hexagonal wire mesh machines meet a wide range of project requirements.
Why Choose Our Hexagonal Wire Mesh Machine?
Partner with a trusted hexagonal wire mesh machine manufacturer in China offering factory-direct pricing and technical support.
Factory Direct Pricing
Cut out middlemen by ordering straight from our hexagonal mesh machine factory, and maximize your budget without compromising quality.
Tailored Hexagonal Mesh Machine Solutions
Get custom-configured hexagonal wire mesh machines built to your exact mesh size, wire diameter, and production capacity requirements.
Built to Global Standards
All our hexagonal wire mesh machines comply with ISO and CE safety and performance regulations, ensuring reliable, long-lasting operation worldwide.
Automated High‑Speed Lines
Deploy high‑efficiency, PLC‑controlled hexagonal mesh production lines that boost output, minimize manual labor, and reduce lead times.
Rapid Delivery & On‑Site Setup
Benefit from short manufacturing lead times and comprehensive installation support to get your hexagonal mesh machine up and running fast.
Dedicated After‑Sales Support
Access expert technical assistance for hexagonal wire mesh machines, genuine spare parts, and training to keep operating at peak performance.

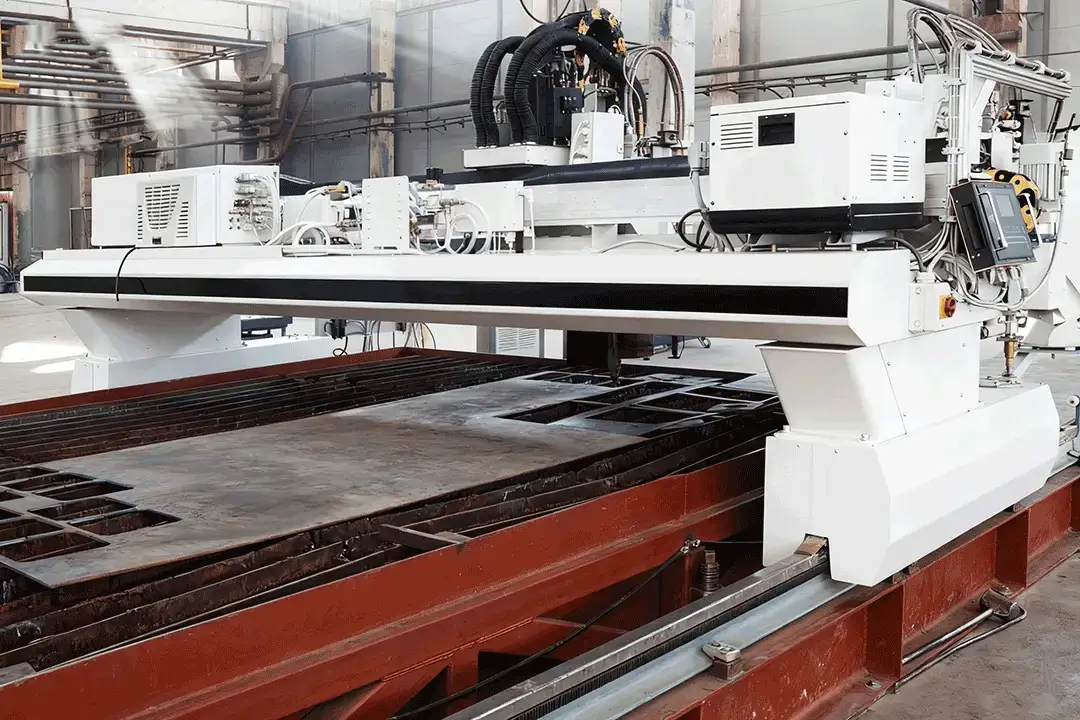

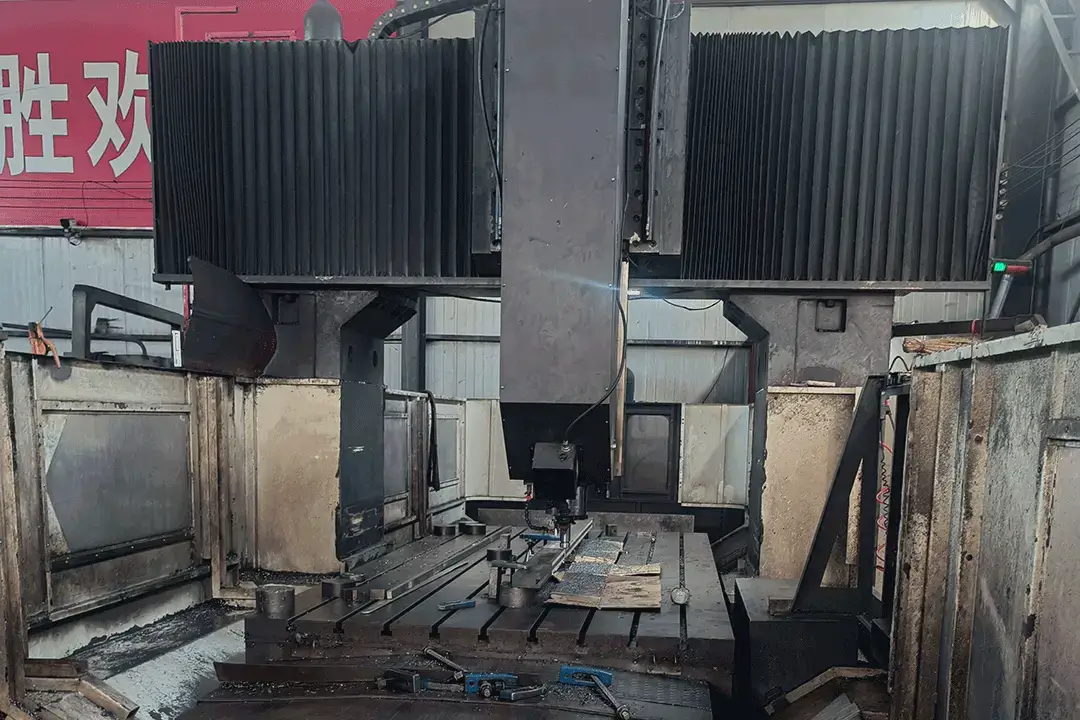

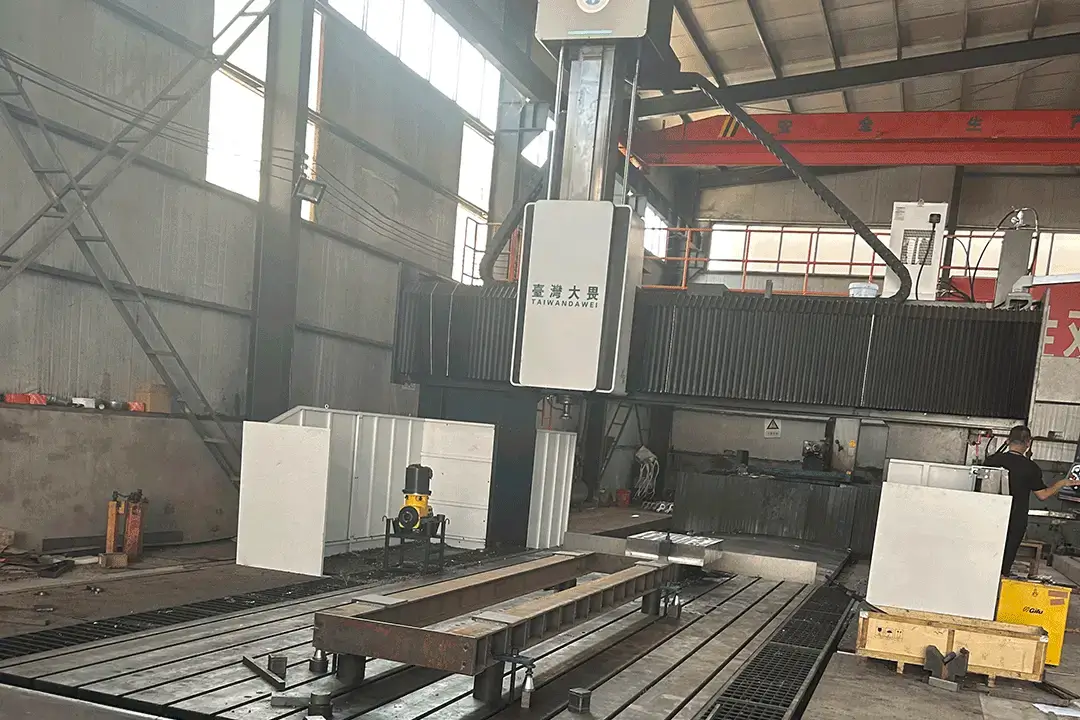

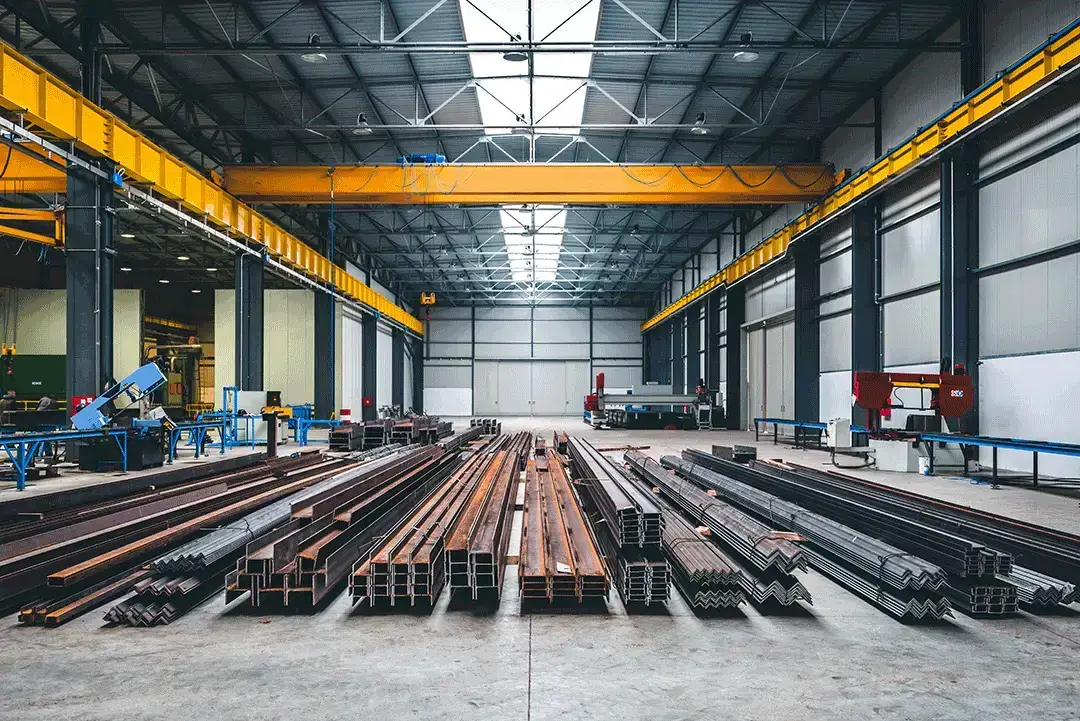

Explore Our Hexagonal Wire Netting Machine Manufacturing Capabilities
From raw alloy ingots to finished, assembly-ready components, all core processes for our hexagonal mesh machines are completed in-house, adhering to strict quality standards.
Customization of Hexagonal Wire Mesh Machine
We know that every project has unique requirements. Our hexagonal wire mesh machine can be fully customized.
Hexagonal Mesh Size
The forward-reverse twisted machine forms a hexagonal mesh by forward three-twist and three-twist in reverse, totaling six twists.
The polyester type and small type machine uses a forward three-twist weave.
Standard mesh sizes include 12/16″ (15×18 mm), 5/8″ (18×25 mm), 3/4″ (22×33 mm), 1″ (27×41 mm), 1‑1/4″ (32×52 mm), 1‑1/2″ (39×61 mm), 2″ (55×70 mm), and 3″ (78×86 mm).
Custom sizes such as 4″ (100×100 mm) are also available on request.
Wire Diameter
Wire diameter varies based on mesh size.
Galvanized wire mesh wire diameter range: 0.38–2.0 mm.
PVC-coated wire mesh wire diameter range: 0.8–2.0 mm (including coating).
Polyester mesh wire diameter range: 2.0–4.0 mm.
Custom wire sizes are also available upon request.
Maximum Mesh Width
The hexagonal wire mesh machine is available in max weaving widths of 1 m, 2 m, 3 m, and 4 m.
Wider sizes can be customized to meet specific project needs.
Machine Color & Branding
We can customize options for the hexagonal wire mesh machine’s appearance, including color and logo, to align with your company’s branding.
This helps strengthen brand recognition when presenting your factory or equipment to clients.
Control System
The hexagonal mesh machine comes with a standard control cabinet, with a customizable power supply to match your factory needs.
It can be upgraded to a PLC system for greater precision, auto start/stop, and more straightforward operation.
PLC-type machine equipped with reliable PLC and servo drive systems from default brands such as INOVANCE, VEICHI, and XINJE. We also support customization with specified brands like DELTA, Siemens, Mitsubishi, or OMRON according to customer requirements, etc.
Hexagonal Mesh Size
The forward-reverse twisted machine forms a hexagonal mesh by performing a forward three-twist and a three-twist in reverse, resulting in a total of six twists.
The polyester type and small type machine uses a forward three-twist weave.
Standard mesh sizes include 12/16″ (15×18 mm), 5/8″ (18×25 mm), 3/4″ (22×33 mm), 1″ (27×41 mm), 1‑1/4″ (32×52 mm), 1‑1/2″ (39×61 mm), 2″ (55×70 mm), and 3″ (78×86 mm).
Custom sizes such as 4″ (100×100 mm) are also available on request.
Wire Diameter
Wire diameter varies based on mesh size.
Galvanized wire mesh wire diameter range: 0.38–2.0 mm.
PVC-coated wire mesh wire diameter range: 0.8–2.0 mm (including coating).
Polyester mesh wire diameter range: 2.0–4.0 mm.Custom wire sizes are also available upon request.
Maximum Mesh Width
The hexagonal wire mesh machine is available in max weaving widths of 1 m, 2 m, 3 m, and 4 m.
Wider sizes can be customized to meet the specific needs of your project.
Machine Color & Branding
We can customize options for the hexagonal wire mesh machine’s appearance, including color and logo, to align with your company’s branding.
This helps strengthen brand recognition when presenting your factory or equipment to clients.
Control System
The hexagonal mesh machine comes with a standard control cabinet, with a customizable power supply to match your factory needs.
It can be upgraded to a PLC system for greater precision, auto start/stop, and more straightforward operation.
PLC-type machine equipped with reliable PLC and servo drive systems from default brands such as INOVANCE, VEICHI, and XINJE. We also support customization with specified brands, such as DELTA, Siemens, Mitsubishi, or OMRON, according to customer requirements.
Contact us today to get your personalized hexagonal wire mesh machine solution and boost your production efficiency.
How to Order Your Hexagonal Wire Mesh Machine
We keep the process simple. From your first message to delivery and setup, we’re with you every step of the way.
Tell Us What You Need
Please send us your project goals and mesh specifications. We’ll quickly determine which machine is the best fit.
Get a Detailed Quote
You’ll receive a clear offer with pricing, configuration options, and lead time—all from our factory.
Confirm the Details
Once everything looks right, we’ll finalize the specs and sign a straightforward contract.
Manufacturing in Progress
Your machine goes into production. We’ll update you with photos and keep a close eye on quality.
Secure Packing & Delivery
We pack the machine safely and arrange shipping to your site—by sea, rail, or road, as needed.
Set up Help & Ongoing Support
Need help during installation? We offer remote or on-site assistance and are always here to help if questions arise later.

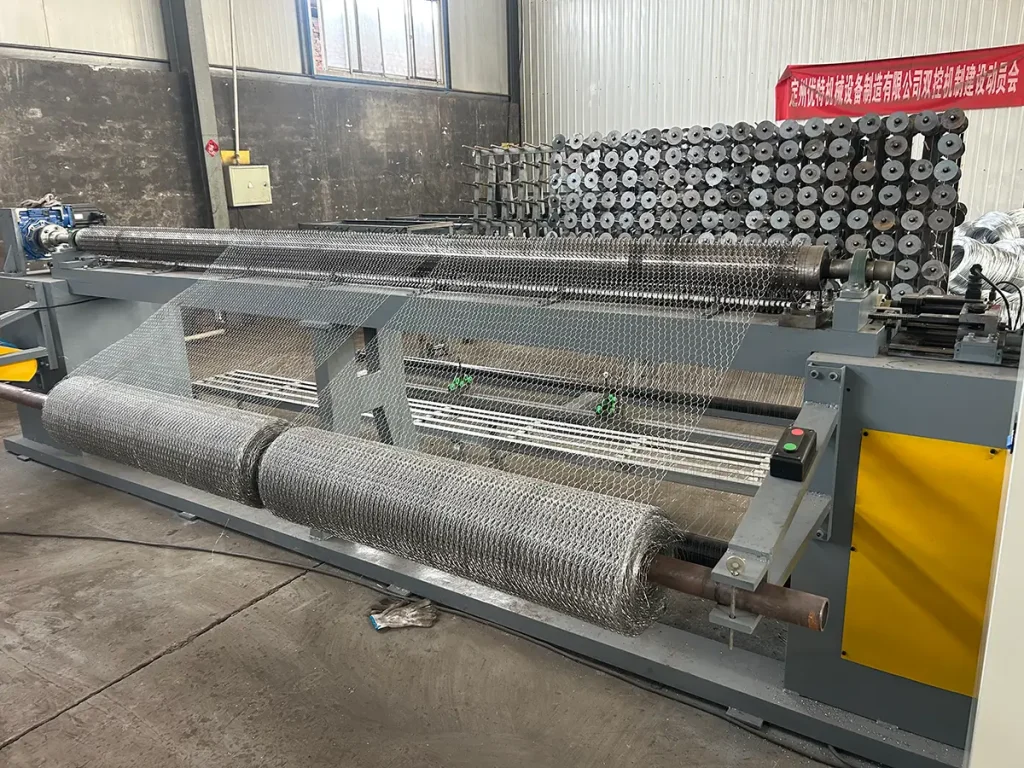

Working Process of Hexagonal Wire Mesh Machine
This section provides the working process of the forward-reverse twisted hexagonal wire netting machine. For the working process of the polyester hexagonal mesh machine and the small hexagonal mesh machine, please refer to the respective product pages.
01. Preparing Metal Wire Spools
Use a wire winding machine to evenly wind metal wire onto spools.
Each winding machine can prepare 6 or more spools at once.
Prepare extra spools in advance for uninterrupted operation.
02. Loading Metal Wire onto Pay-Off Stand
Place the wire spools onto the spool rack.
Then thread each wire spool through the corresponding feed hole at the bottom of the spool holder.
03. Secure Wire to Main Machine
Feed the metal wire through the machine’s wire feeding mechanism and secure it to the mandrel at the front end of the machine.
The amount of wire required depends on the mesh size; for the same mesh width, smaller mesh sizes require more wire.
04. Start Machine and Adjust Mesh Shape
Start the machine and weave the first row of mesh.
Once the first row of mesh is formed, position it on the needle shaft and begin the second cycle until the mesh is securely attached to the machine’s needle shaft.
At this point, you can produce a mesh with uniformly shaped and accurate holes.
You can get the operator’s manual for our hexagonal wire mesh machines here.
